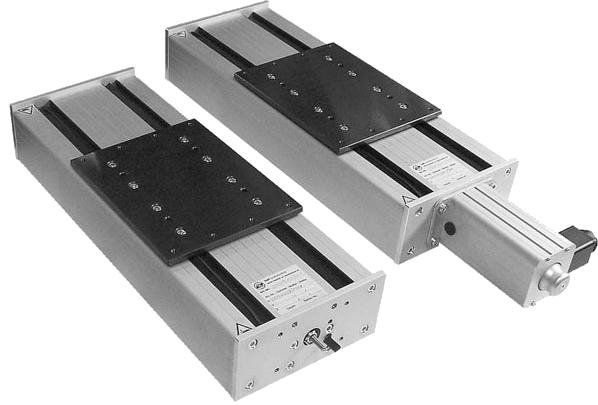

Standard Duty Ball Screw Actuators
Our Standard Duty Rodless Ball Screw Actuator is an economical solution for accurate linear motion.
- Wide stable base (175mm) makes it resistant to cantilevered loads
- Loads up to 350 lbs.
- 10 standard travels from 2.2 to 49.5 in.
- Integral dust covers do not reduce travel
- Available with or without motors
- Limit switches at both ends of travel - standard
- Features precision rolled ball screw and patented
anti-backlash ball nut for precise play free positioning - Speed up to 20 in/sec with 20mm pitch ball screw
- Wide stable base. 175 mm
- NEMA 23 and 34 motor mounts available or custom motor mounts can be provided
- Complete electronics package available to complete your application
- Ball Screw pitch of 5mm, (optional 10mm and 20mm)
- Repeatability: ±0.01 mm (± .0004 in)
- Accuracy: ±0.1 mm / 300 mm (± .004 in /12 in)
- Click here for T nuts for T slots
- Click here to Select Model and ADD TO QUOTE
| Length mm (in) |
Travel mm (in) |
Weight Kg (lb) |
| 300 (11.8) | 57 (2.2) | 7.3 (16) |
| 400 (15.7) | 157 (6.2) | 9.5 (21) |
| 500 (19.7) | 257 (10.1) | 11.8 (26) |
| 600 (23.6) | 357 (14.1) | 13.6 (30) |
| 850 (33.5) | 607 (23.9) | 19 (42) |
| 1000 (39.4) | 757 (29.8) | 20 (44) |
| 1100 (43.3) | 857 (33.7) | 22.2 (49) |
| 1250 (49.2) | 1007 (39.6) | 25 (55) |
| 1350 (53.1) | 1103 (43.4) | 27.2 (60) |
| 1500 (59.1) | 1257 (49.5) | 30 (66) |

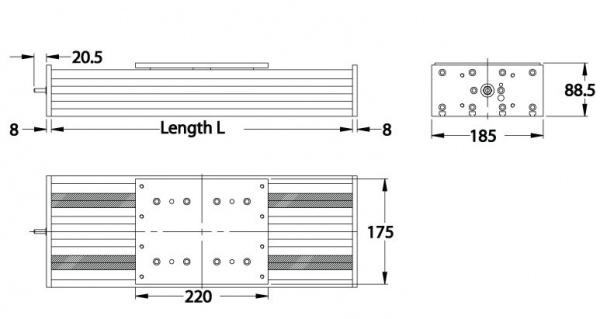

Click on dimensioned drawing of Standard Duty Ball Screw Actuator to enlarge

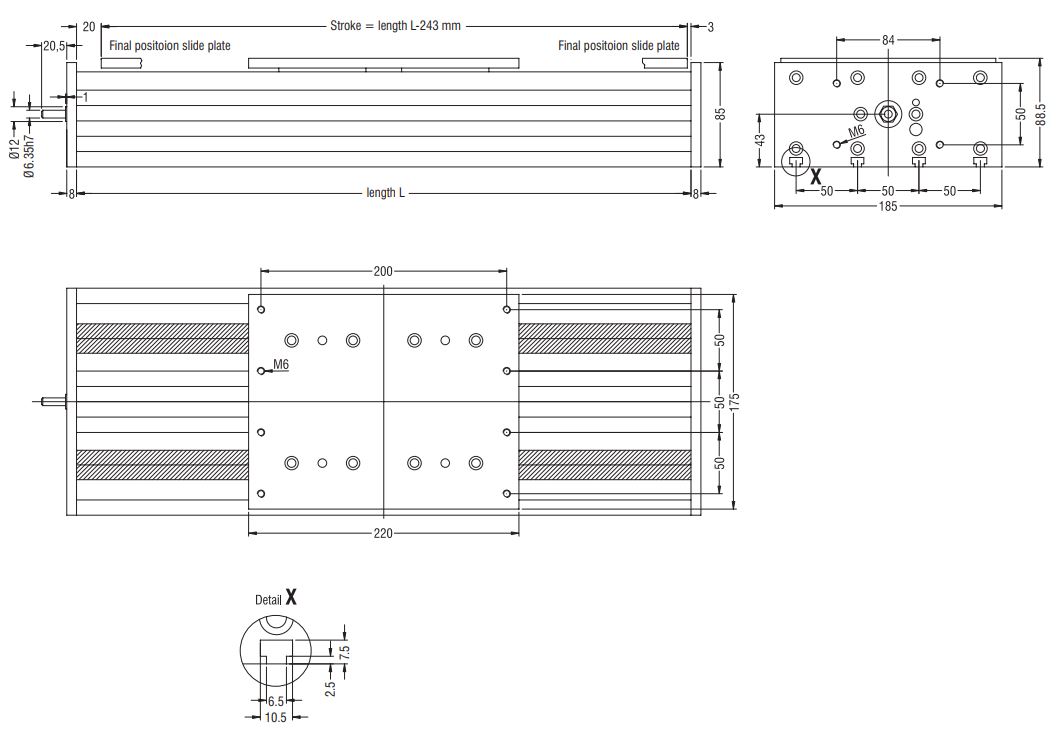

Dimensioned Drawing of Standard Duty Ball Screw Actuator
