Linear Rail LFS-12-1

Request for Quote
Application Assistance

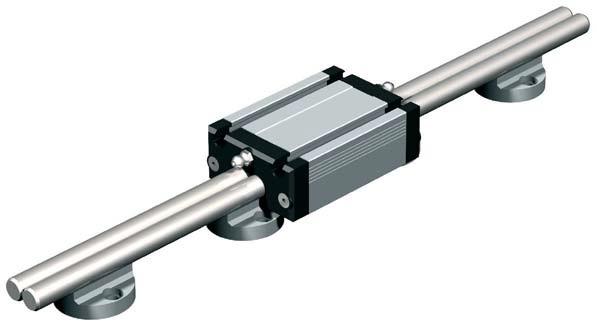

  • LFS-12-1 Linear Rail

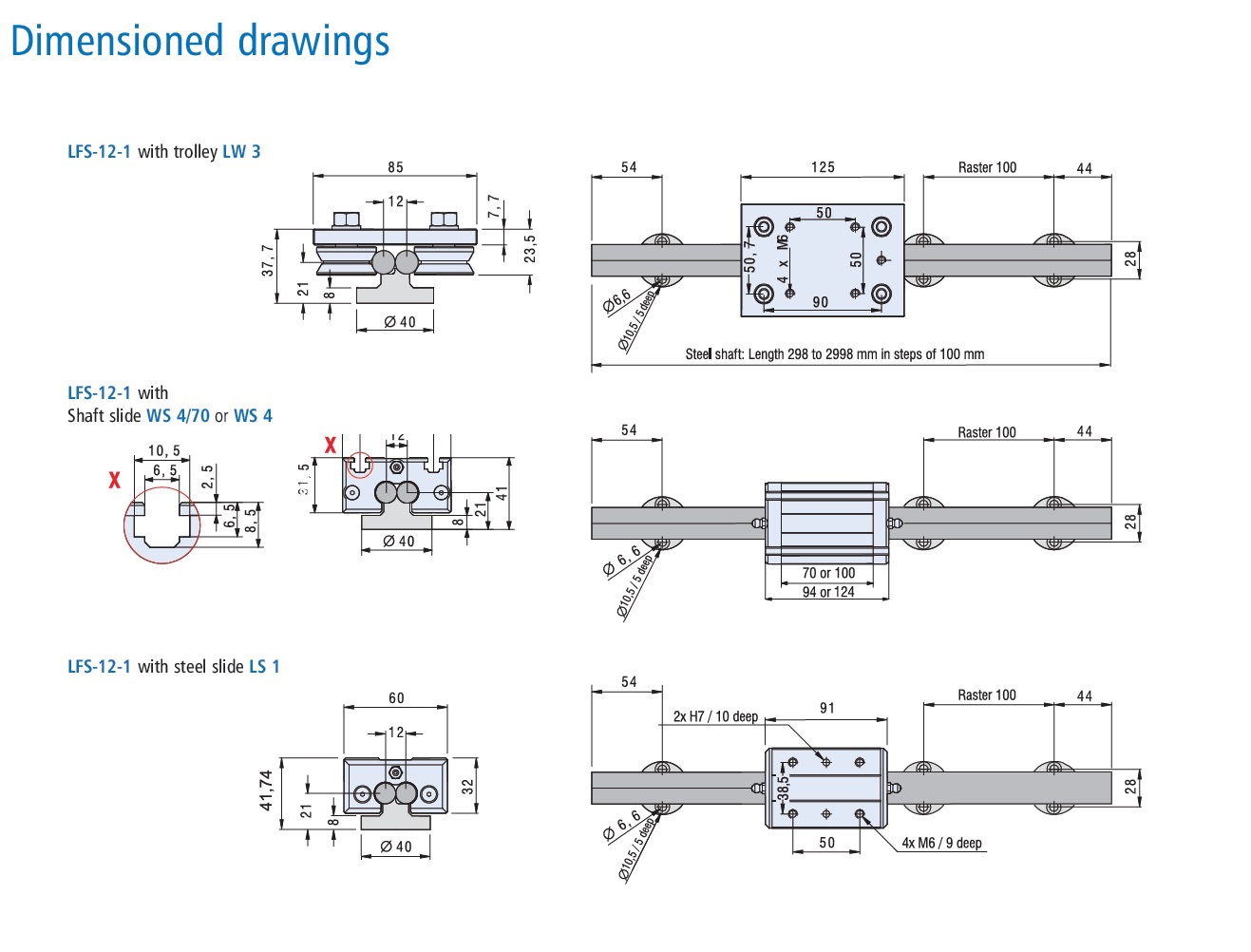

  • Linear Guide Rail 12-1 Specs
Click image to enlarge
  • These steel shafts are made of Cf53 German steel,
    • The German steel is one of the highest quality steel in the world
    • The Cf53 is particularly well suited for both surface hardening and resilience
  • The shafts are centerless ground and induction hardened to 60±2RC for long life and durability
  • Linear rail LFS-12-1 is a very economical linear rail and bearing system and simple to install
  • The linear rails have blind M5 tapped holes to make mounting super simple
  • The mounting holes oare on 100mm centers and you only need to use as many as required by the load
  • So for small loads and short travel , they only need mounting plates at the ends
  • It is extremely light and depending on the number of supports used, can be very compact
  • A linear rail is made up of 2 shafts and at least 2 mounting feet.
  • This rail system is EASY TO INSTALL
  • Provides simple accurate linear motiona at the lowest possible cost
  • The rails are sold separately.
  • The mounting feet are sold 10 sets/bag, including assembly hardware.

Configure Your Part
Select Options then Click “Add to Quote”
Part Number:
Quantity
Add To Quote
Features
  • Two parallel, hardened and ground 12 mm diameter steel shafts, accuracy grade h6, hardened to RC 62 + 2
  • Parallelism and accurate center distances achieved by rails and ground spacers inserted into the extrusion at 50 mm centers
  • Lightweight, high stiffness
  • Hardened 6.5 mm dia. spacers for mounting screws
  • Weight is 3 Kg/m
  • View and select compatible carriages and accessories
  • Anti-Twist
  • Guide any lenght up to 3m
  • Special lenghts to order

Extra Images


LFS 12-1
Shaft slide WS 4/70   Shaft slide WS 4   Steel slide LS 1   Trolley LW 8
C0 3003 N   C0 4868 N   C0 3508 N   C0 2160 N
C 1873 N   C 2426 N   C 2105 N   C 4000 N
F1 static 2821 N   F1 static 4157 N   F1 static 3549 N   F1 static 4320 N
F1 dynamic 1599 N   F1 dynamic 2071 N   F1 dynamic 2130 N   F1 dynamic 3846 N
F2 static 3303 N   F2 static 4868 N   F2 static 3508 N   F2 static 2160 N
F2 dynamic 1873 N   F2 dynamic 2426 N   F2 dynamic 2105 N   F2 dynamic 4000 N
Mx static 29.8 Nm   Mx static 43.9 Nm   Mx static 36.2 Nm   Mx static 109.5 Nm
My static 105.3 Nm   My static 155.2 Nm   My static 129.0 Nm   My static 194.4 Nm
Mz static 123.3 Nm   Mz static 181.7 Nm   Mz static 127.5 Nm   Mz static 97.2 Nm
Mx dynamic 16.8 Nm   Mx dynamic 21.8 Nm   Mx dynamic 21.7 Nm   Mx dynamic 97.4 Nm
My dynamic 59.7 Nm   My dynamic 77.3 Nm   My dynamic 77.4 Nm   My dynamic 173.0 Nm
Mz dynamic 69.9 Nm   Mz dynamic 90.5 Nm   Mz dynamic 76.5 Nm   Mz dynamic 180.0 Nm

Forced Moment Drawing
