LES 5 Heavy Duty Ball Screw Actuator

Request for Quote
Application Assistance

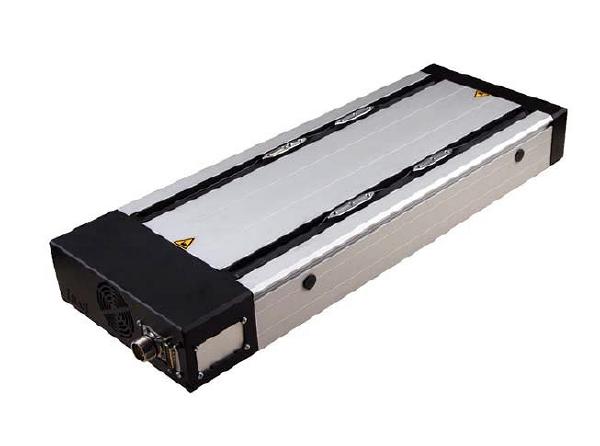

  • LES 5 Heavy Duty Ball Screw Actuator

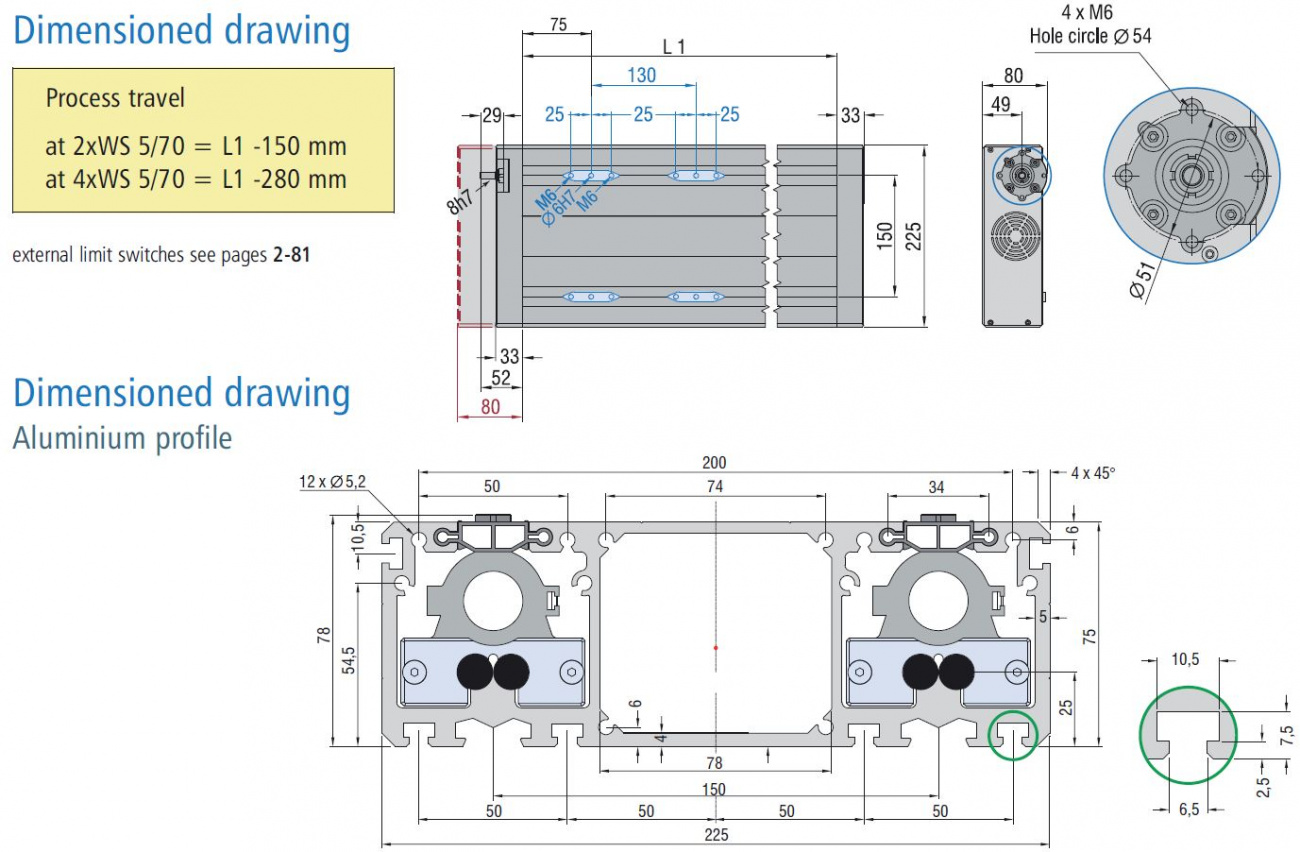

  • LES 5 Ball Screw Actuator Dimensioned Drawing

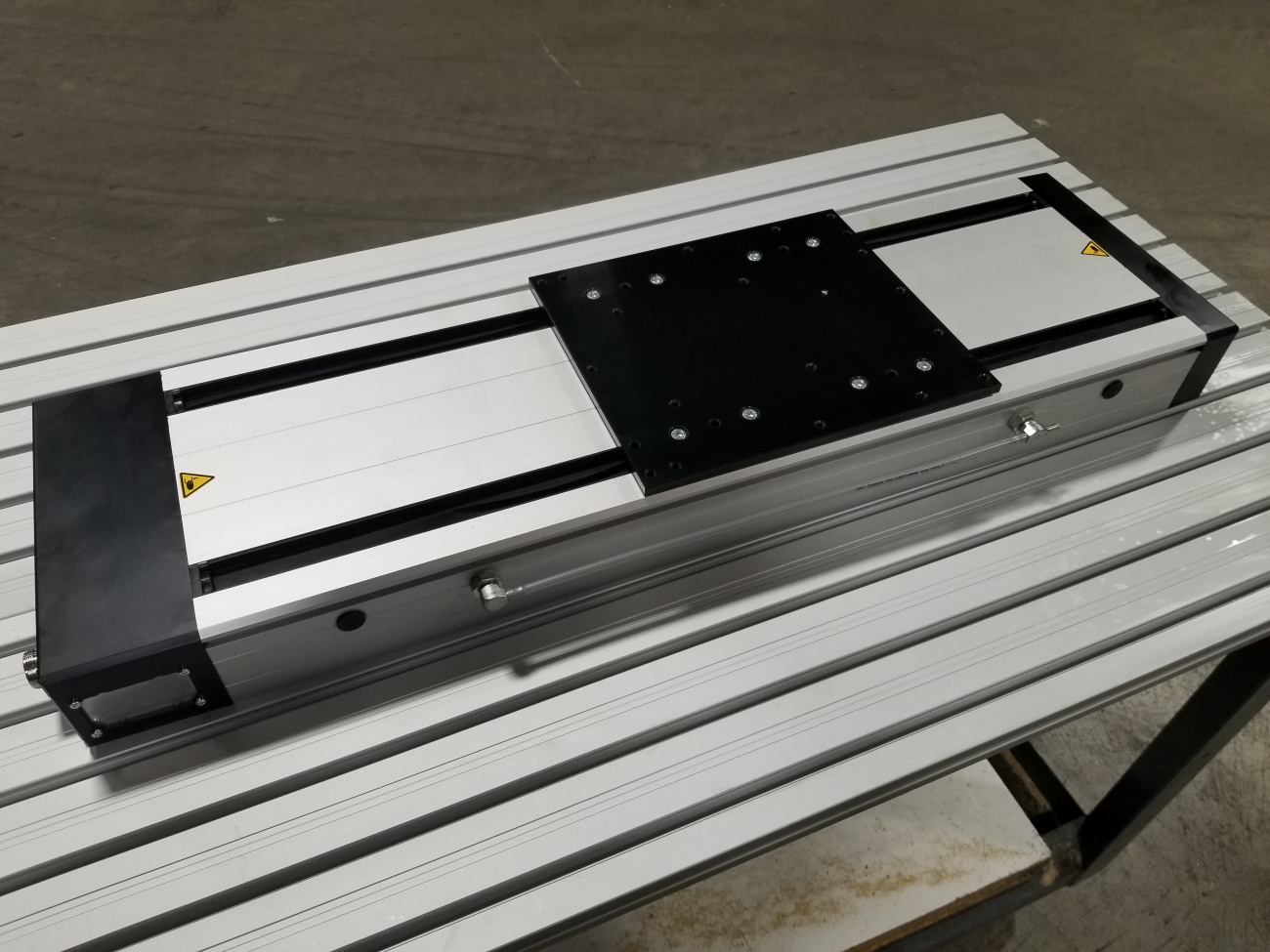

  • LES5 linear actuator with positive air pressure fittings
Click image to enlarge

Features of the LES 5 Heavy Duty Ball Screw Actuator

  • Play free accurate motion
  • Long life, nothing to adjust
  • Travels from 5" up to 107.2"
  • Wide base -225mm- ideal for large cantilevered loads
  • Built in limit switches at both ends of travel
    • Optional external mounted/adjustable limit switches available
  • Available with internal and external motor mounts
  • Available as single axis or XY or XYZ configurations
  • Motor options include stepper or brushless servo with or without failsafe brake
  • ALSO available with NO motor or NEMA 23 or NEMA 34 motor mounts
  • Optional positive air pressure fittings to keep dust and dirt out

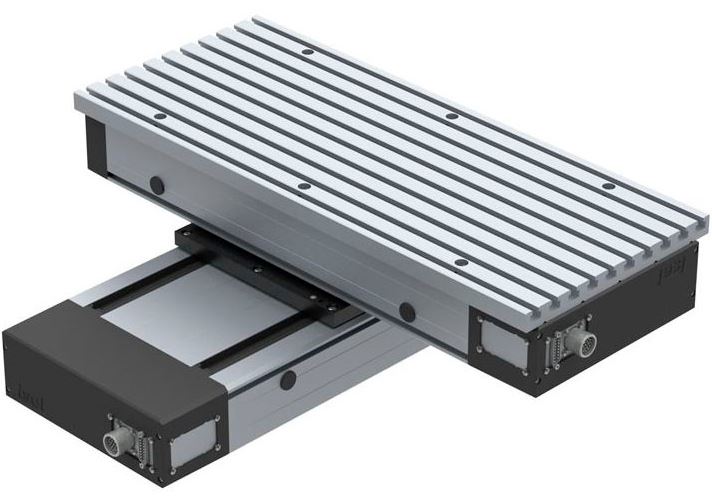

XY Example with LES 5 slildes and internal motors
  • Ball screw pitch of 2.5mm, 5mm, 10mm or 20mm for fine resolution or high speed
  • Custom motor mounts can be provided
  • Sealed against dust and swarf - WITHOUT BELLOWS - so there is no loss of travel
  • KNOW WHAT YOU WANT? Click here to Select Model and ADD TO QUOTE
  • NOT SURE WHAT YOU NEED? Tell us a little about your application and WE WILL HELP YOU

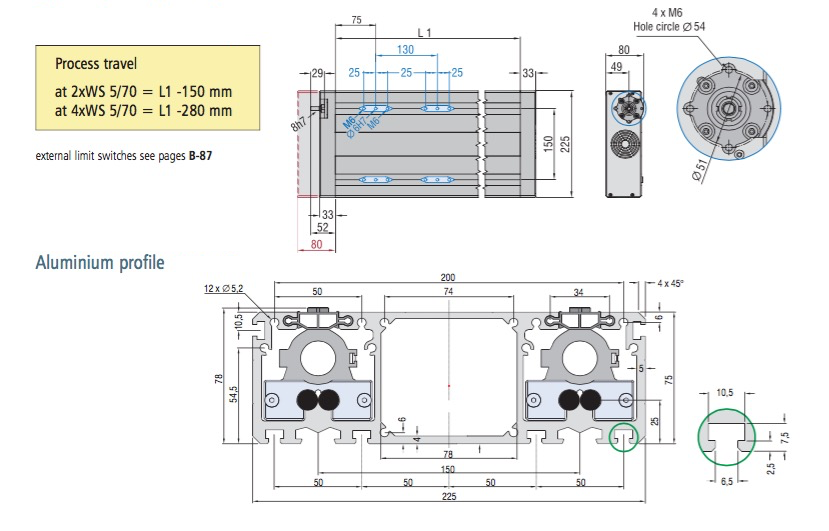

Click on the following dimensioned drawing of LES 5 actuator to enlarge:
Heavy Duty Ball Screw Actuator | Isel USA https://www.isel-us.com/les-5-heavy-duty-ball-screw-actuator https://www.isel-us.com/includes/work/image_cache/ee858a9d5fbc9efa0d248e1491fd877a.thumb.jpg https://www.isel-us.com/includes/work/image_cache/ee858a9d5fbc9efa0d248e1491fd877a.thumb.jpg LES 5 Heavy Duty Ball Screw Actuator Dimensions Heavy Duty Ball Screw Actuator | Isel USA https://www.isel-us.com/les-5-heavy-duty-ball-screw-actuator https://www.isel-us.com/includes/work/image_cache/ee858a9d5fbc9efa0d248e1491fd877a.thumb.jpg https://www.isel-us.com/includes/work/image_cache/ee858a9d5fbc9efa0d248e1491fd877a.thumb.jpg LES 5 Heavy Duty Ball Screw Actuator Dimensions LES 5 Heavy Duty Ball Screw Actuator Dimensions

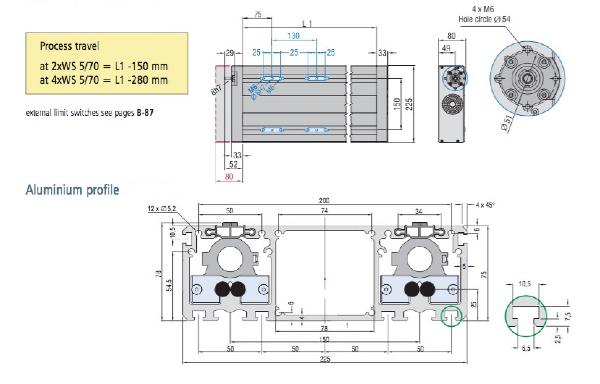

Click on dimensioned drawing of LES 5 Heavy Duty actuator to enlarge or the following links for We also offer a complete automation package with compatible single axis stepper controllers and single axis servo controllers as well as multi-axis stepper controllers and multi-axis servo controllers.
Select Model and click ADD TO QUOTE
Configure Your Part
Select Options then Click “Add to Quote”
Part Number:
Quantity
Add To Quote
Features
  • Max Load 449 lbs.
  • Limit Switches at both ends of travel are included
  • One piece body protects internal parts from dust and dirt
  • Features precision rolled ball screw and patented antibacklash ballnut for precise play-free positioning
  • Speed up to 20 in/sec
  • 225 mm wide base good for cantilevered loads
  • 16 standard travels from 4.8" to 107.2" CAD drawings available for download
  • Options available to create motorized linear slides
  • NEMA 23 and 34 motor mounts available or custom motor mounts can be provided
  • Linear Slides can be configured as XY slides or XYZ slide configurations
  • Complete Electronics Package Available to Complete your Application
  • Screw leads of 2.5mm, 5mm, 10mm & 20mm for fine resolution or high speed
  • Repeatability : ± 0.01 mm (± .0004 in)
  • Accuracy : ± 0.1 mm / 300 mm (± .004 in / 12 in)
  • Optional positive air pressure fittings to keep dust and dirt out

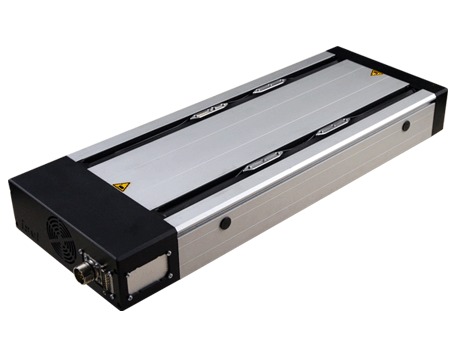

cad

Extra Images



LES 5
Aluminium profile LES 5   No load torques (Ncm)   LES 5 with two WS 5/70   LES 5 with four WS 5/70
Moment of inertia Ix  2,361.654 cm4   Speed (rpm) Spindle pitch   C0 5,153.30 N   C0 6,606 N
Moment of inertia Iy  298.925 cm4   2.5 4 5 10 20   C 2,319.41 N   C 3,746 N
*Centre of gravity see dimensioned drawing 33.39 mm   500 15 15 16 17 18   F1 static 4,401.33 N   F1 static 5,642 N
Cross-sectional area  42.49 cm2   1500 19 19 19 20 21   F1 dynamic 1,980.96 N   F1 dynamic 3,198 N
Material  AIMgSiO, 5F22   3000 23 24 24 25 26   F2 static 5,153.30 N   F2 static 6,606 N
Anodising  E6/EV1                 F2 dynamic 2,319.14 N   F2 dynamic 3,746 N
Weight with steel shafts  13.8 kg/m                 Mx static 376.59 Nm   Mx static 423.15 Nm
Weight with steel shafts and spindles 15.2 kg/m                 My static 164.31 Nm   My static 366.73 Nm
                    Mz static 192.39 Nm   Mz static 429.39 Nm
LES 4 / 5 / 6  Spindle pitch [mm]  2.5 4 5 10 20       Mx dynamic 169.49 Nm   Mx dynamic 239.85 Nm
Profile length L [mm]  max. permissible feed speed [rpm]  max. permissible feed speed v permissible [mm/s]       My dynamic 73.95 Nm   My dynamic 207.87 Nm
490 4000 167 267 333 667 1333       Mz dynamic 86.59 Nm   Mz dynamic 243.49 Nm
990 3000 125 200 250 500 1000
1390 1500 63 100 125 250 500

Process travel

at 2xWS 5/70 = L1 -150 mm

at 4xWS 5/70 = L1 -280 mm


1490 *  3000 125 200 250 500 500
1990 *  1650 69 110 138 275 550
2490 *  1050 44 70 88 175 350
2990 *  750 31 50 63 125 250
* with spindle support

Linear unit  LES 5
Aluminium profile WxH (mm)  225 x 75
Guide weight (kg/m)  13.8
Moment of inertia Ix (cm4)  299
Moment of inertia Iy (cm4)  2362
Weight with spindle (kg/m)  15.2
Guide slides  2x WS 5-70
4x WS 5-70
Slide weight (kg)  0.68 / 1.36
Spindle pitch (mm)  2.5 / 4 / 5 / 10 / 20
Max. permissible feed force (N)  2626 / 3450 / 3450 / 3150 / 1425
Repeat accuracy (mm)  ± 0.02
Process path (mm)  L 1 - 150 / L 1 - 280
Noise level (dBA)  < 85
Storage temperature range (°C)  0 – 40
Operating temperature range (°C)  0 – 60 (80)
Relative air humidity (%)  < 90
