Ball Nuts and Accessories for 25mm Diameter Ball Screws

Click image to enlarge

25mm Diameter Ball Nuts and Accessories

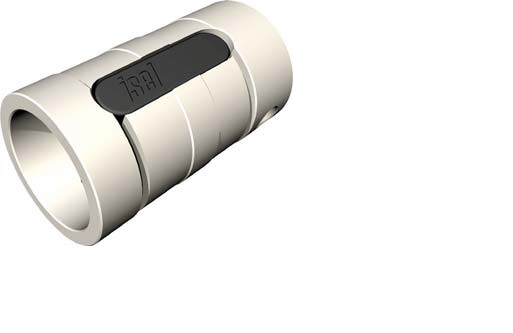

	KM cylindrical ball nuts for 25mm diameter ball screws Available in 5, 10 and 20mm pitch feature patented anti-backlash design backlash adjustment and greasing through clamping blocks
	Top mounting block has grease fitting and backlash adjustment screw comes with threaded lock nut to secure ball nut
	Flange mounting block has grease fitting and backlash adjustment screw comes with threaded lock nut to secure ball nut

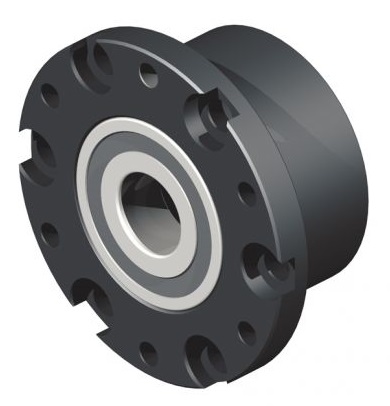

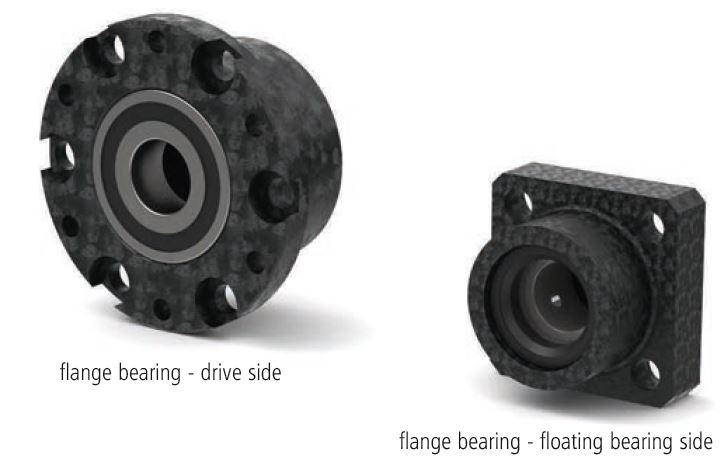

	Drive side mounting bearing Features 2 angular contact bearings Mounted back to back for maximum axial loading 17 mm ID
	Floating side bearing Features needle bearing with bushing for ball screw 19 mm ID
	dirt wipers sold as a set included with 20mm pitch KM ball nut 5mm, 10mm wipers sold separately
	Lock nut - M17x1
