WV Right Angle Plates

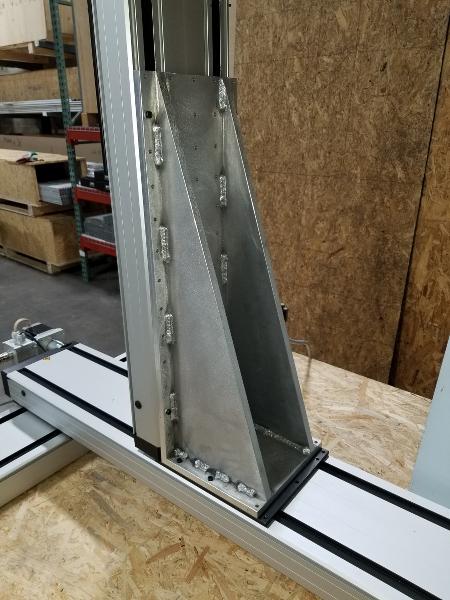

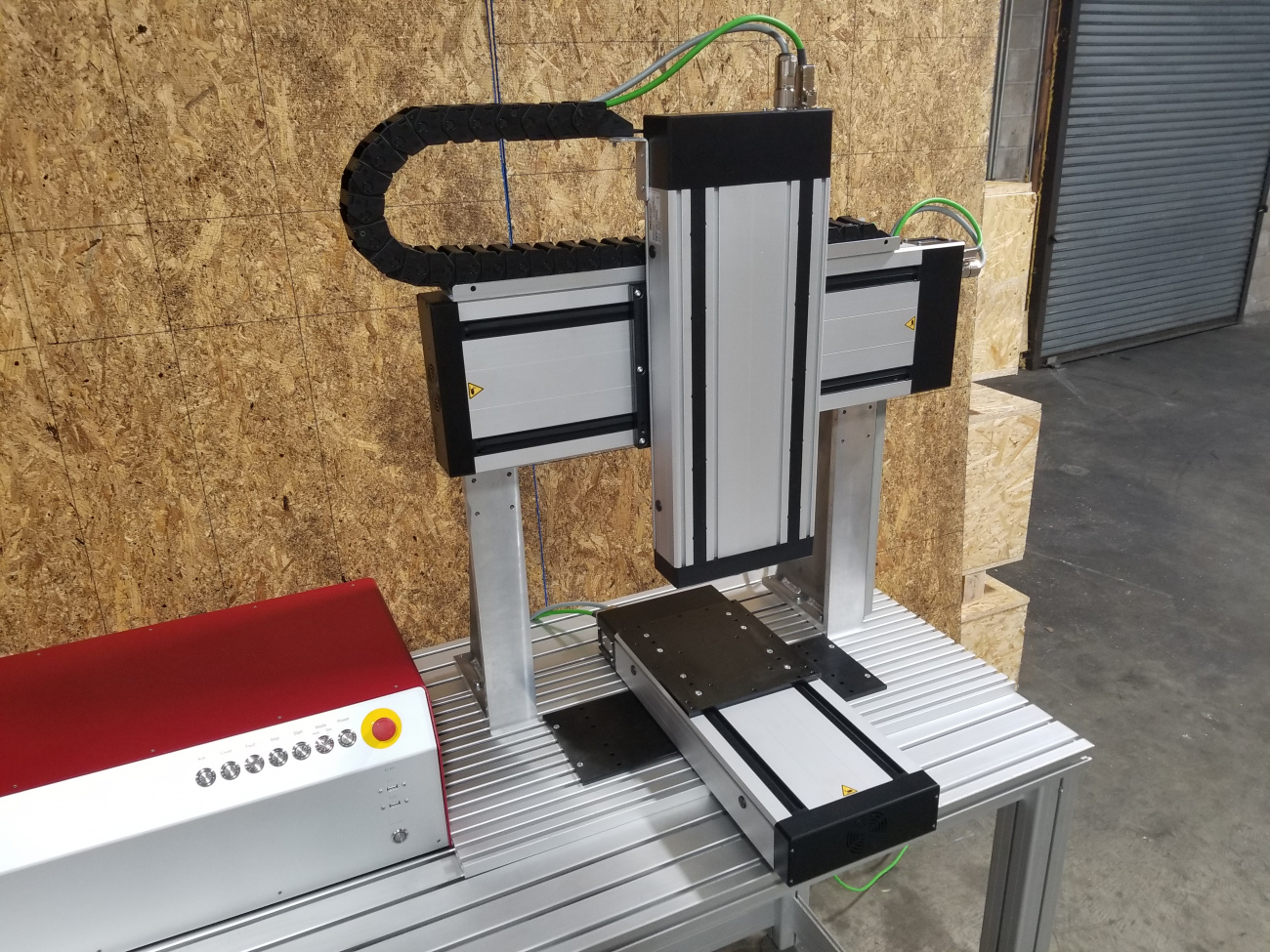

An ANGLE PLATE is generally a work holding device usually made of cast iron and used in fabrication. The WV Series of right angle plates are universal right angle plates made of aluminum and can be used for both work holding as well as in a variety of fixturing applications. The WV Series of angle plates are available in heights much greater than typical angle plates and offer a series of predrilled holes and slots for convenient mounting and fixturing. In addition, the all aluminum construction keeps the weight low and makes modifications easy. The WV Angle Plates are particularly useful for custom machine construction or automation stations. These brackets are particularly usefull in setting up robot workstations quickly and easily without the need for fabricating custom brackets. These angle plates bolt right to the T slot surface of our ROBOT WORKBENCHES..

The angle plates come in heights up to 670mm/26"

• Light weight die-cast aluminum for durability
• Mounting surfaces milled flat to 0.05 mm (.002 in)
• Perpendicular machined surfaces are accurate to 0.1 mm (.004 in)
• Unmachined surfaces have black or silver powder-coated finish for longevity
• Gusseted sides provide strength and rigidity
• All through holes and slots are designed for M6 or 1/4-20 screws
• Mounting through holes are on a 25, 50, or 100 mm grid for easy assembly and flexibility
• Wall thicknesses range from 12 mm (.5 in) to 15 mm (.6 in) to resist large forces and vibrations
• Suitable for machine components, machining mounting block, universal angular mount
• Aluminum alloy plates feature high thermal conductivity and corrosion resistance
• 45° mounting slots on Series 3 offer additional mounting flexibility
• Optional cover plates available
• COMPATIBLE WITH ALL OUR T-SLOT TABLE PLATE EXTRUSIONS
• COMPATIBLE WITH ALL OUR T-SLOT WORKBENCHES
• For a list of T Nuts and clamping accessories, see Robot Accessories and T-Nuts.

	CATALOG NUMBER	OVERALL DIMENSIONS MM (in)	WEIGHT Kg (Lb)
	WV1 209110 0010	71 x 71 x 75  (2.8 x 2.8 x 3) Dimensioned Drawing or SOLID MODEL	0.2  (.44)

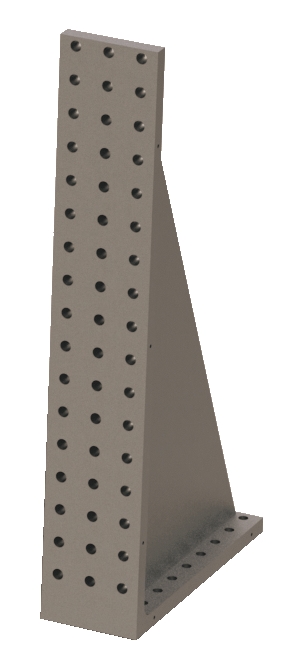

	WV2 209110 0022 Matching Cover Plate P/N: 209110 0021	446 x 221 x 75  (17.6 x 8.7 x 3) Dimensioned Drawing or SOLID MODEL	2.6  (5.7)

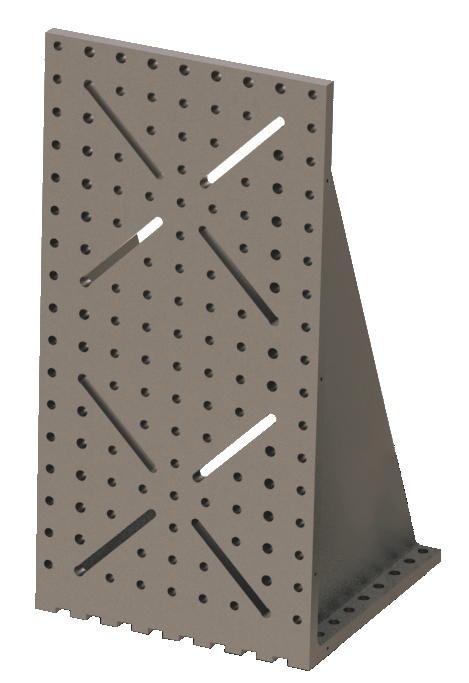

	WV3 209110 0032 Matching Cover Plate P/N: 209110 0031	446 x 221 x 221  (17.6 x 8.7 x 8.7) Dimensioned Drawing or SOLID MODEL	5.8  (12.8)

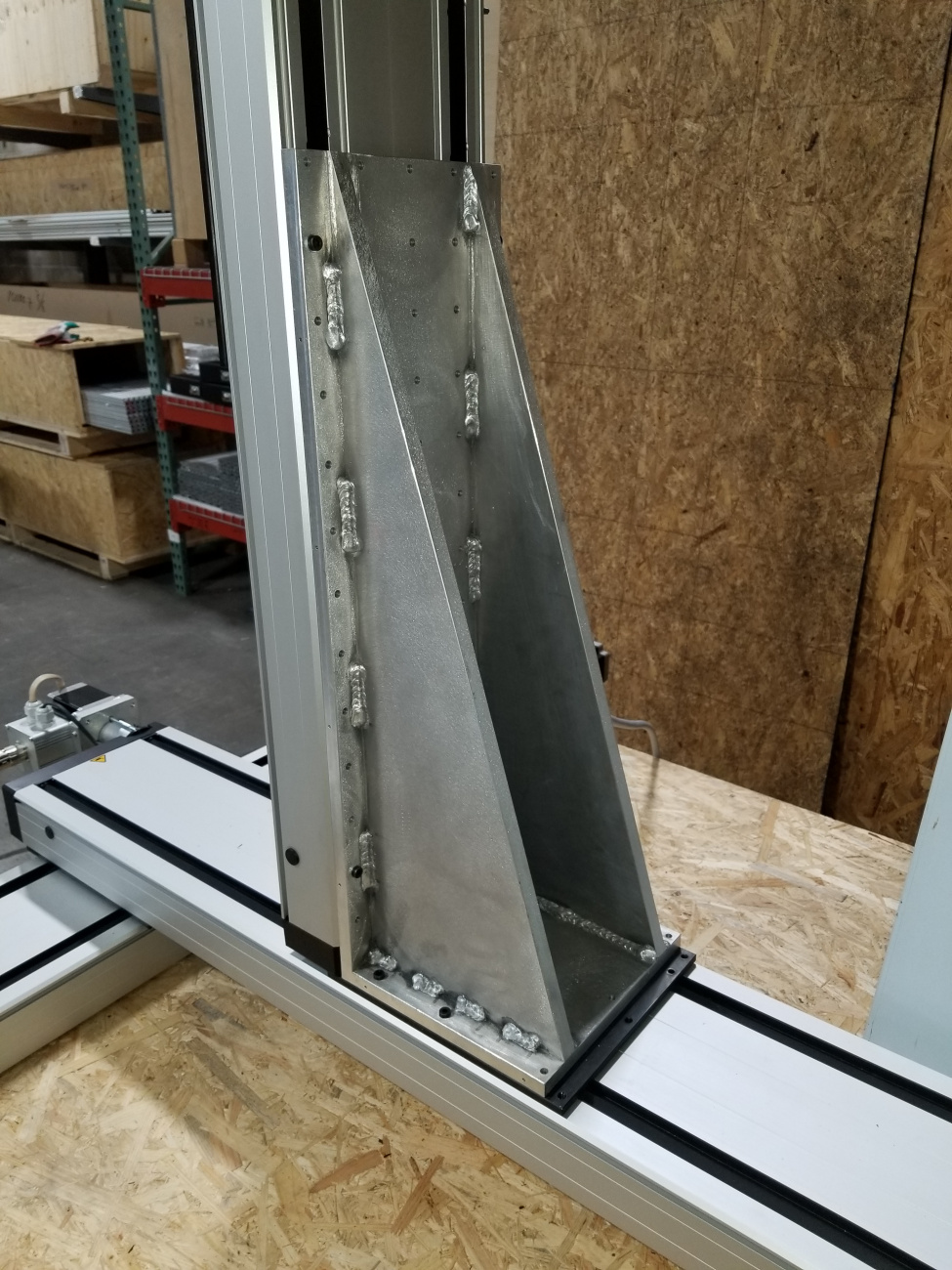

	WV6 209110 0060 Matching Cover Plate P/N: 209110 0061	670 x 220 x 220 (26.4 x 8.7 x 8.7 ) Dimensioned Drawing or SOLID MODEL	13.3  (29.8)

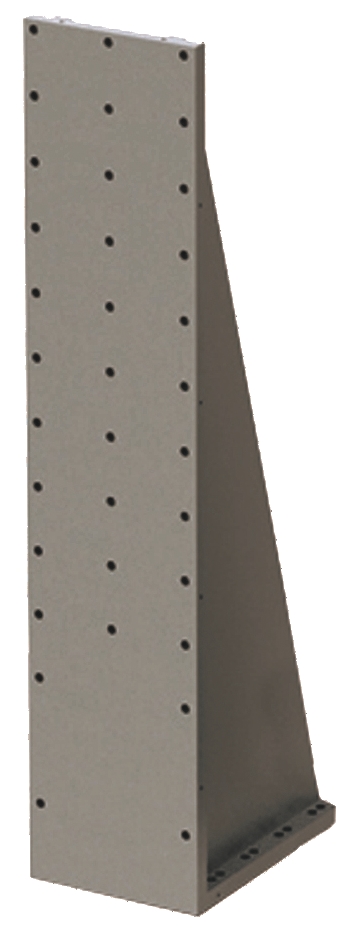

	WV7 209110 0070 Matching Cover Plate P/N: 209110 0071	670 x 220 x 145 (26.4 x 8.7 x 5.7) Dimensioned Drawing or SOLID MODEL	10.8  (23.8)

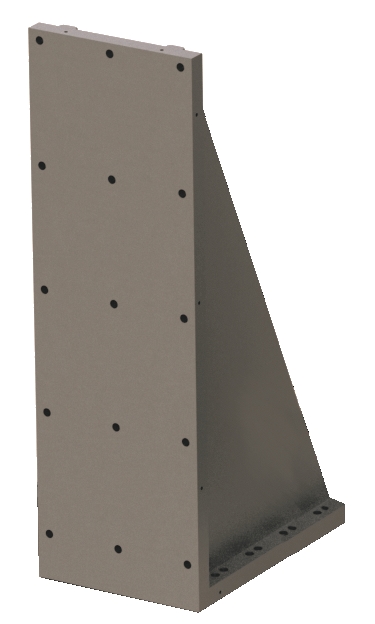

	WV8 209110 0080 Matching Cover Plate P/N: 209110 0081	446 x 222 x 145 (17.6 x 8.8 x 5.7) Dimensioned Drawing or SOLID MODEL	7.4  (16.3)

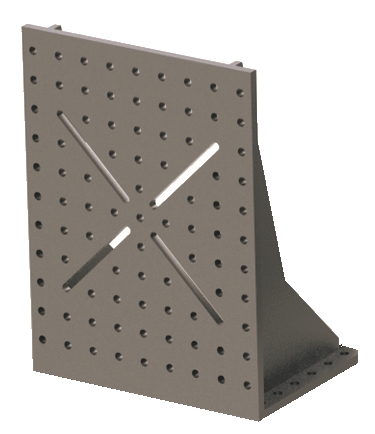

	WV19 209110 0190 Cover plate not available	300 x 150 x 221 (11.8 x 5.9 x 8.7) Dimensioned Drawing or SOLID MODEL	2.5  (5.6)
	Angle Plate Covers are clear anodized aluminum. Also available in stainless steel on special order. Screws to angle bracket.
