PU50 Aluminum Profile

Request for Quote

Application Assistance

Click image to enlarge

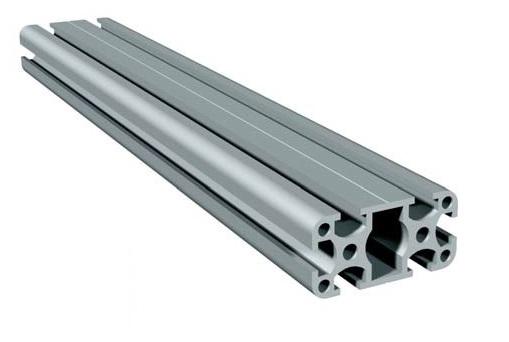

The PU50 Aluminum Profile is 50x50mm. It is used for framing and guarding in general automaiton applications. Also use for building frames, benches, racks and partitions. Suitable for high loads.

Configure Your Part

Select Options then Click “Add to Quote”

Part Number:

Reset

Quantity

Add To Quote

Features

Aluminum clear anodized
Produced to Din EN 12020-2
Light, compact and stable
T-slots are provided on each side of profile
T-slots are designed to use M6 nut or M6 nut strip
Available up to 3 m length
Option pwoer coatings in anthracite and light grey

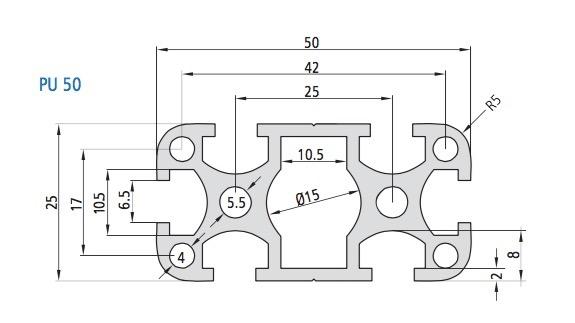

Universal Profiles PU 50
	PU 50
Dimensions (W × H)	50 x 25 mm
Length	up to 3 metres (special lengths upon request)
Weight	appr. 1.3 kg/m
	4 T-key inserts for M6 sliding nuts 2 cavity inserts, Ø 5.5 mm for M6
Moment of inertia I_x	10.99 cm4
Moment of inertia I_y	2.81 cm4
Moment of resistance W_x	4.40 cm3
Moment of resistance W_y	2.25 cm3
