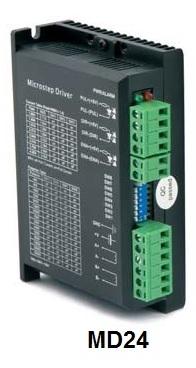

MD 24 Stepper Motor Microstep Driver
[316303]

Request for Quote

Application Assistance

•

Click image to enlarge

• For 2 or 4 phase hybrid step motors
• 1 - 4.2 amp / phase
• Max supply voltage MD 24 - 50DC
• MD24 is 118 x 75.5 x 33mm
• Ambient Temp 0°c - 50°c, Max 70°c
• Takes pulse, direction & enable signals
• Standby current can be set to full or 50%
• Current is dip switch selectable
• Resolution is dip switch selectable from 2 to 125 microsteps/step
  • (up to 25000 microsteps/rev on a standard 200 step/rev stepper motor)

Quantity

Add to Quote

Specifications

• Current: 1-4.2A/Phase
