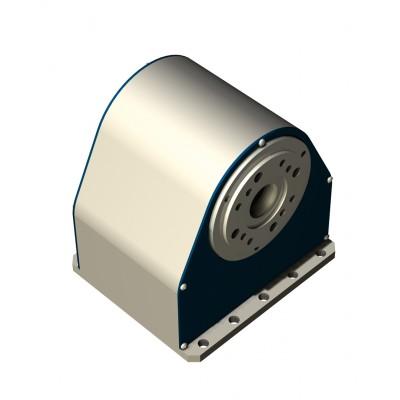

ZD 30 Rotary Stage
The ZD 30 Rotary Stage is small, accurate and has very low backlash.
Applications include
See below to select rotary stage and accessories to ADD TO QUOTE
- This rotary stage features a 15mm diameter through bore
- 30:1 reduction to motor shaft for smooth and powerful motion
- An SK20 collet holder that works with ER20 collets is an option
- comes standard with NEMA 17 stepper motor
- built in HALL HOME switch - no mechanical moving parts
- a variety of 3 jaw chucks are available options
- For catalog pages - click here
- For 3D SOLID MODEL - click here
- OEM custom models available on request
- for load and speed specifications, see below
- for a single axis controller to run this rotary stage, click here.
Click here to select rotary stage and accessories to ADD TO QUOTE
Accessories for ZD 30 Rotary Stage
Accessories for ZD 30 Rotary Stage
Applications include
- laser engraving
- inspection
- as a lathe rotary stage for milling and turning
The following accessories are available for the ZD30:
| ZD30 Accessories | |
 |
 |
| 3 jaw chuck, 65mm dia. | 3 jaw chuck, 80mm dia. |
 |
 |

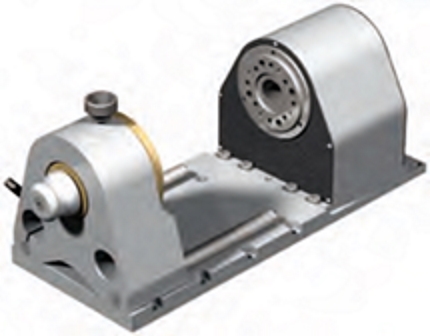

| SK20 collet holder accepts ER20 collets | Tailstock and bed Available in 4 lengths |
 |
For dimensions of tailstock and beds, click here. |
| 3 jaw chuck, 125mm dia. | |
See below to select rotary stage and accessories to ADD TO QUOTE

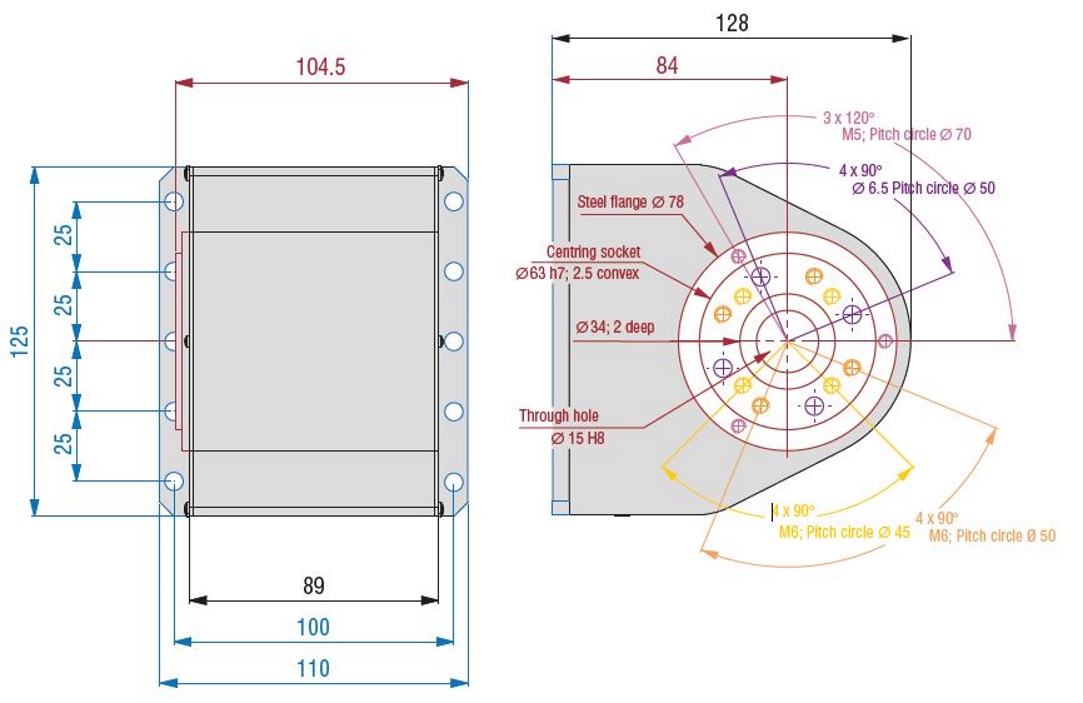

| ZD 30 | ||||||||||
| stepper motor MS 045 HT * | Version | Item-No. | Lges | L | L (ZD30) | L (RE-ZD30) | Lw | L (65) | L(80) | |
| Reduction ratio | 0.0625 | RE-ZD30 200 mm | 269100 1060 | 358 | 209 | 138.5 | 331.5 | 165 | 97 | 80.5 |
| Output speed [1/min] | 0 - 40 | RE-ZD30 300 mm | 269100 1070 | 458 | 309 | 238.5 | 431.5 | 265 | 197 | 180.5 |
| Operating torque (0 - 1600 Hz) [Nm] | 12 | RE-ZD30 400 mm | 269100 1080 | 558 | 409 | 338.5 | 531.5 | 365 | 297 | 280.5 |
| Rated holding torque (static load) [Nm] | 20 | RE-ZD30 500 mm | 269100 1090 | 658 | 509 | 438.5 | 631.5 | 465 | 397 | 380.5 |
| Min. step (positional accuracy) [arcmin] | 2.5 | |||||||||
| Weight [kg] | 2.9 | |||||||||
| * Values for half-step operation | ||||||||||
| Rotary or tilting units | 1* | 2* | 3 | 4 | 5 | 6 | 7 |
| ZD 30 (step) | 14 kg | 8 kg | 20 Nm | 12 Nm | 12 Nm | 40 rpm | 1:30 |
| *) Guideline values will vary according to application !! | |||||||
