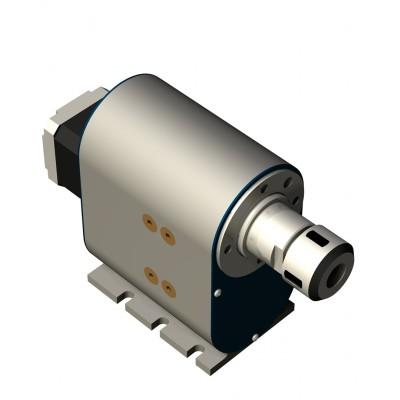

MD1 Mini Rotary Stage
The MD1 is a belt driven rotary stage with a small footprint and very low backlash.
It can be fitted with a 3 jaw chuck or ER20 collet holder for almost any automation project.
The unit is available with stepper motor, DC brush servo or brushless servo motor.
The unit is ideal for rotary positioning where space and budget are limited.
For catalog pages - click here
For SOLID MODEL - click here
For a single axis controller to run this rotary stage click here.
Click here to select part and accessories and ADD TO QUOTE

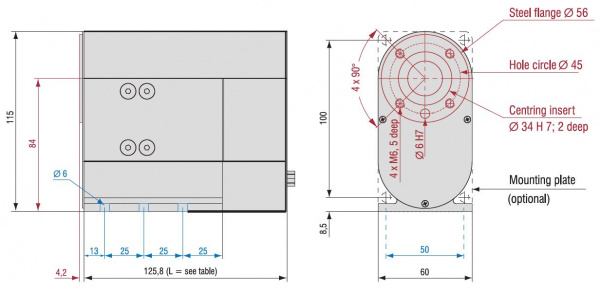

(click on image for larger dimensioned drawing)
See below to select part and accessories and ADD TO QUOTE:
It can be fitted with a 3 jaw chuck or ER20 collet holder for almost any automation project.
The unit is available with stepper motor, DC brush servo or brushless servo motor.
The unit is ideal for rotary positioning where space and budget are limited.
For catalog pages - click here
For SOLID MODEL - click here
For a single axis controller to run this rotary stage click here.
Click here to select part and accessories and ADD TO QUOTE

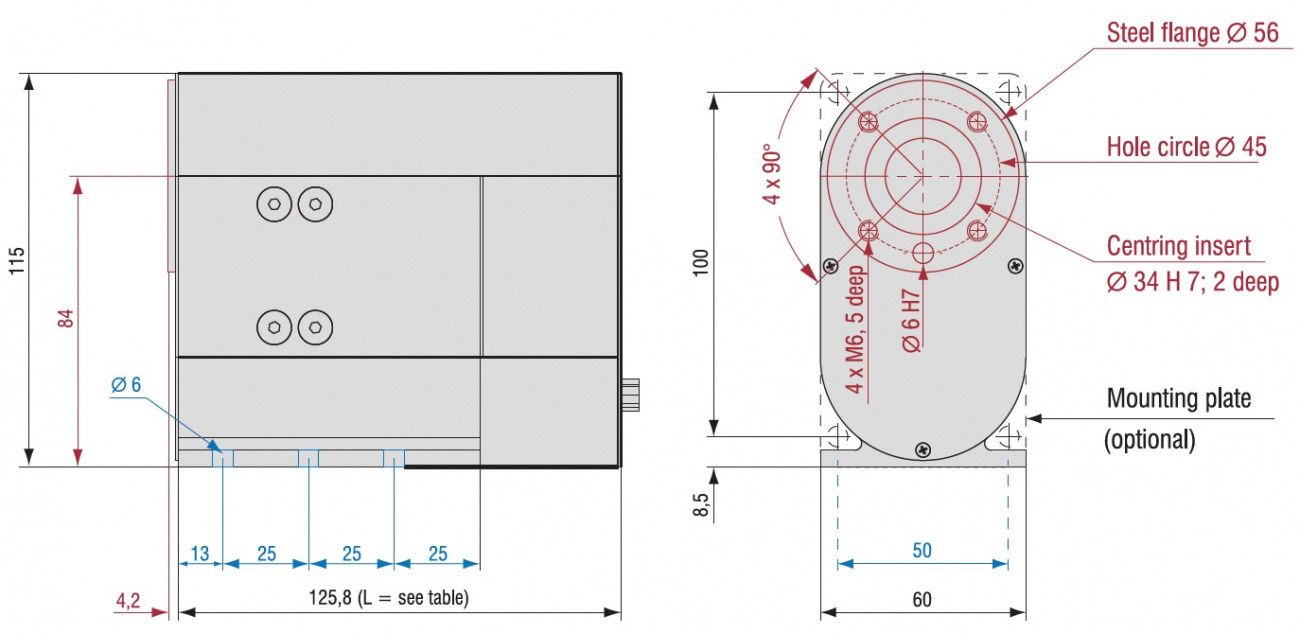

(click on image for larger dimensioned drawing)
| MD1 Mini Rotary Stage Accessories | |
 |
 |

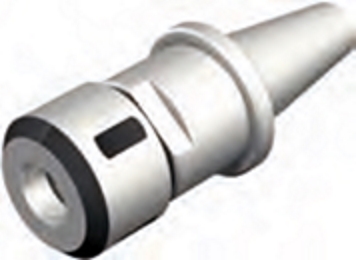

| 65mm dia. 3 jaw chuck | SK20 collet holder accepts ER20 collets |
See below to select part and accessories and ADD TO QUOTE:
| MD 1 | |||
| MS 045 HT stepper motor * | DC servomotor RE 40 | EC servomotor EC 42 | |
| Reduction ratio | 1:20 | 1:20 | 1:20 |
| Output speed [1/min] | 0 - 60 | 0 - 175 | 0 - 150 |
| Operating torque (0 - 1600 Hz) [Nm] | 8 | -- | -- |
| Rated torque [Nm] | -- | 3 | 3.2 |
| Rated holding torque (static load) [Nm] | 14 | 3.9 | 4 |
| Min. step (positional accuracy) [arcmin] | 3.5 | 2 | 2 |
| Gewicht [kg] | 1.35 | ||
| * Values for half-step operation | |||
| Length L per step | Length L for DC servo | |
| closed design | 129 mm | 180 mm |
| closed with installation plate | 133 mm | 184 mm |
| Rotary or tilting units | 1* | 2* | 3 | 4 | 5 | 6 | 7 |
| MD 1 (step) | 5 kg | 2.5 kg | 14 Nm | 8 Nm | 8 Nm | 60 rpm | 1:20 |
| MD 1 (DC servo) | 6 kg | 3 kg | 3.9 Nm | 3 Nm | 3 Nm | 175 rpm | 1:20 |
| MD 1 (EC servo, brushless) | 6 kg | 3 kg | 4 Nm | 3.2 Nm | 3.2 Nm | 150 rpm | 1:20 |
| *) Guideline values will vary according to application !! | |||||||
