What To Consider When Choosing a Ball Screw Actuator

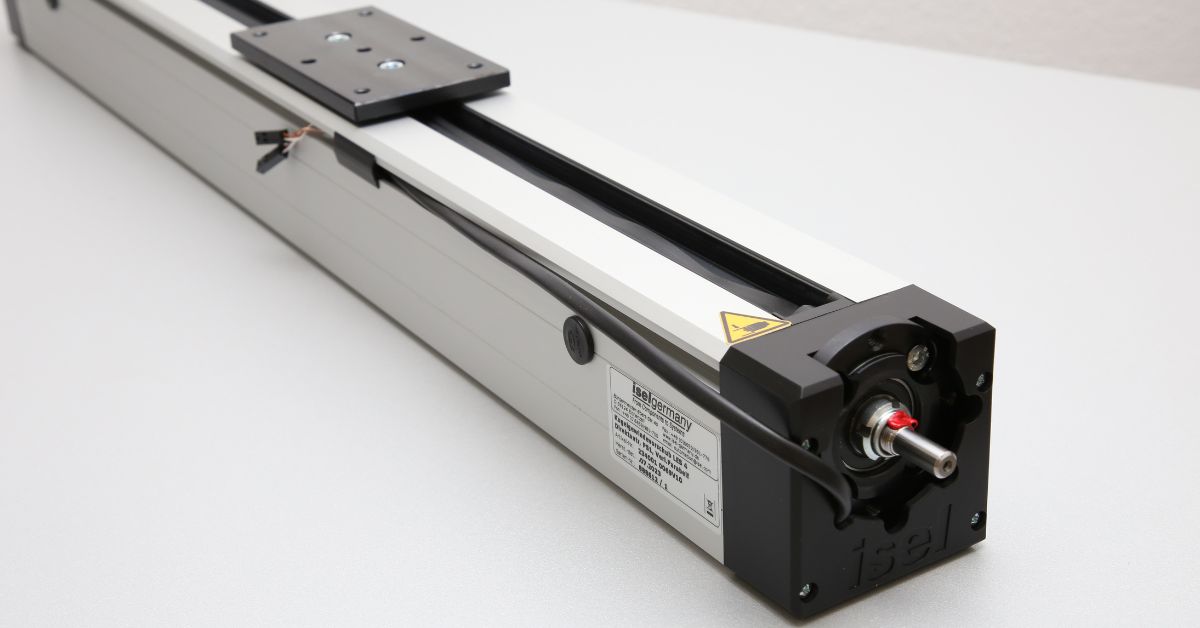

In precision mechanics and automation, selecting the appropriate ball screw actuator is a crucial decision that ensures machine functionality. Ball screw actuators convert rotational motion into linear motion with high efficiency and repeatability, making them indispensable in various industrial applications.

Learning what to consider when choosing a ball screw actuator enables you to make an informed decision that aligns with your specific operational requirements. This process involves a clear understanding of multiple elements, ranging from load capacity to environmental conditions.

These factors can significantly impact the performance, lifespan, and reliability of the actuator, making the right choice indispensable. A meticulous approach will ensure the effective balance of these variables.

Load Capacity

Load capacity is a critical factor in the selection of a ball screw actuator. Several key parameters, including the screw diameter, lead, and the quality of the ball bearing used, will dictate the load capacity of the ball screw. When evaluating load capacity, it's crucial to consider the axial and radial loads that the actuator will support during operation.

Axial loads are forces applied along the axis of the screw, while radial loads act perpendicular to the axis. An accurate assessment of these loads ensures the actuator can handle the demands of your application without succumbing to excessive wear or mechanical failure.

Speed and Acceleration

The speed and acceleration capabilities of a ball screw actuator define how quickly and efficiently it can move to the desired position. The lead of the screw, which is the distance the nut travels per revolution of the screw, is what determines the speed of a ball screw actuator. This, in conjunction with the motor's speed, defines its linear velocity.

Acceleration refers to the rate at which the actuator can change its speed. High acceleration rates are essential for applications requiring rapid start-stop cycles or quick positioning adjustments. However, achieving high acceleration involves overcoming inertia and can impose significant stress on the actuator's components, particularly the ball bearings and the screw itself.

Ball Screw Whip

Ball screw whip is a phenomenon that occurs when the ball screw rotates at high speeds, leading to undesired vibrations and oscillations. Critical speed is a parameter in the performance of ball screw actuators, as it refers to the rotational speed at which the system may experience excessive vibrations and instability. When the operational speed of the actuator approaches this critical threshold, the whip effects can become pronounced, potentially leading to damage and decreased accuracy. Various factors influence this whip, including:

• Screw length and diameter: A shorter screw length reduces the likelihood of whip occurring, as it minimizes the distance over which vibrations can propagate. Evaluate application requirements and opt for the shortest and widest screw feasible for your setup.

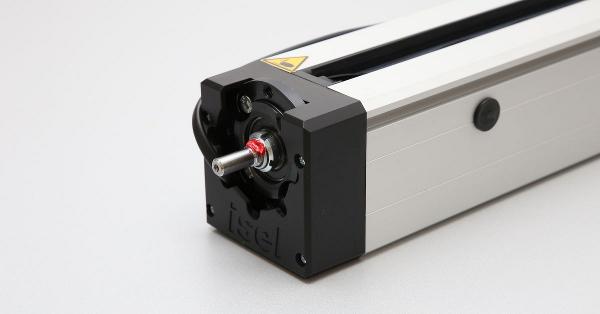

• Support bearings: The inclusion of additional support bearings can enhance the rigidity of the entire system. When configuring the actuator, consider whether you can integrate additional bearings to support the ends or midpoint of the screw.
• Stiffness and material: Select ball screw actuators made from high-quality materials with excellent tensile properties. Prioritize alloys designed for enhanced rigidity, as they help maintain structural integrity at higher rotational speeds.

Precision and Accuracy

The lead accuracy of the screw, which is the degree to which the actual lead (distance traveled per screw revolution) matches the specified lead, is what determines its precision. Higher lead accuracy translates to more precise linear motion, minimizing positional errors. Manufacturers typically provide lead accuracy grades, such as C3, C5, or C7, with C3 being the most precise.

An important factor affecting precision is backlash, which is the small amount of movement that occurs with a reversed travel direction. To mitigate this, many ball screw actuators feature preloaded ball nuts, which minimize backlash by maintaining constant contact between the ball bearings and the screw.

Environmental Conditions

The operational environment plays a significant role in the selection of a ball screw actuator. Various factors can affect its performance and durability.

Temperature

Extreme temperatures, high or low, can affect how the materials and lubricants used in the ball screw actuator operate. High temperatures can result in the degradation of lubricants, increased wear, and thermal expansion of components, potentially leading to binding or loss of precision. Low temperatures may cause lubricants to thicken or solidify, increasing friction and reducing efficiency.

Humidity

High-humidity environments are prone to condensation, which can lead to corrosion of the steel components. Corrosion can compromise the integrity and precision of the actuator, leading to premature failure. To mitigate this, actuators used in humid conditions may feature corrosion-resistant coatings.

Contaminants

Exposure to contaminants such as dust, dirt, and debris can affect ball screw actuators. These particles can infiltrate the screw and nut assembly, increasing friction and wear. In highly contaminated environments, actuators must have protective seals or bellows that prevent debris from entering the mechanical components.

Corrosive Elements

In environments where corrosive elements like chemicals or seawater are present, the risk of corrosion is significantly heightened. Ball screw actuators designed for such conditions often incorporate materials and coatings engineered to resist chemical attack and corrosion.

Maintenance Requirements

Regular maintenance of ball screw actuators is crucial to prolonging their operational life and maintaining optimal performance. Proper lubrication is a fundamental aspect, as it reduces friction and wear between the ball bearings and the screw. Spotting problems early on can prevent minor issues from escalating into critical failures, avoiding costly downtime.

A proactive maintenance schedule should also include the timely replacement of worn components such as bearings, seals, and ball nuts. Using genuine or high-quality replacement parts can significantly enhance the actuator's durability.

Cost and Budget

When evaluating the cost and budget for a ball screw actuator, it's essential to take a complete view that extends beyond the initial purchase price. The total cost of ownership encompasses several factors, including maintenance, energy consumption, operational efficiency, and potential downtime.

High-quality linear ball screw actuators may have a higher upfront cost, but they often provide enhanced reliability, reduced maintenance, and longer service life, which can lead to significant savings. Energy-efficient actuators contribute to lower operational costs by reducing power consumption, which is particularly beneficial in applications involving continuous or high-frequency use.

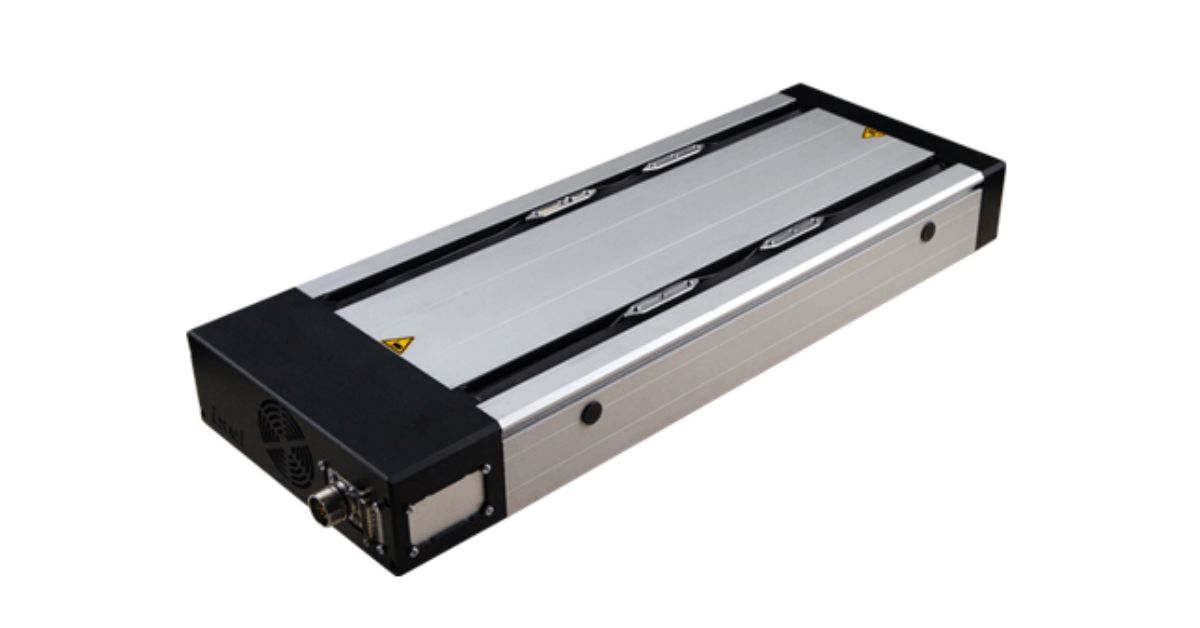

Customization and Flexibility

Customization and flexibility play a critical role in ensuring that the ball screw actuator meets the specific demands of your application. The ability to tailor aspects such as stroke length allows for precise positioning and motion control, aligning the actuator's capabilities with the exact requirements of your operational environment.

Mounting configurations can facilitate seamless integration into existing systems, ensuring that the actuator fits perfectly without necessitating extensive modifications or additional components. Material options also provide considerable flexibility, enabling the selection of materials that can withstand specific environmental conditions or meet particular industry standards.

Selecting the right ball screw actuator involves a full evaluation of various factors to ensure optimal performance and longevity. By carefully considering elements such as load capacity, precision, environmental conditions, and maintenance requirements, you can make an informed decision that will enhance your operational efficiency and reliability.
