The Differences Between Stepper Motors vs. Servo Motors
Time to Read: 10m 0s
When choosing the right motor for your next project or industrial application, the decision often narrows down to two popular types, stepper and servo motors. Both options have unique benefits and limitations and are well-suited to specific tasks.
Making the right choice depends on understanding their principles of operation, capabilities, and how they align with your needs. Whether building a 3D printer, automating machinery, or designing a cartesian gantry system, selecting the appropriate motor is critical to achieving optimal performance.
This guide will help you understand the differences between stepper and servo motors so you can make an informed choice based on your requirements.
What Are Stepper Motors?
Stepper motors are electromechanical devices that convert electrical pulses into discrete mechanical movements. Each pulse moves the rotor a specific distance, often described in steps, which allows for precise positioning without requiring feedback systems. They are a popular choice for applications where accurate control of motion and speed is vital.
Stepper motors use multiple electromagnetic coils arranged in phases. The rotor, a permanent magnet or a toothed iron piece, aligns with the magnetic field generated by these coils. It creates the stepping motion as the motor alternates between activating the coils in a sequence and moving the rotor incrementally.
Advantages of Stepper Motors
Stepper motors are widely preferred for their reliability and precision. Some of their advantages include the following.
Precise Positioning
Stepper motors excel in applications requiring detailed and accurate positioning. This is because they can divide a full rotation into many discrete steps, enabling consistent and repeatable motion.
Cost-Effective Solution
Stepper motors are often more affordable than servo motors and other motion control technologies. Their lower cost makes them an attractive option for budget-conscious projects, particularly hobbyist designs, prototyping, and commercially scaled installations requiring multiple units.
No Tuning Required
Stepper motors deliver consistent performance right out of the box. They do not require tuning, which saves time and ensures reliable operation without customization.
Outstanding Low-Speed Torque
Stepper motors deliver high torque at low speeds. This makes them a great fit for precision operations, such as robotic arms or conveyor systems.
Stable and Consistent Operation
Stepper motors maintain their position and step count effectively without feedback loops, ensuring smooth and stable performance.
Limitations of Stepper Motors
While stepper motors offer precision and simplicity in control, they come with several limitations you must consider when evaluating their suitability for specific applications.
Torque Loss at High Speeds
Unlike certain other motor types, stepper motors exhibit a steep decline in torque at higher rotational speeds, which limits their performance in high-speed applications.
Mid-Range Resonance Issues
Stepper motors are prone to resonance, particularly in their mid-speed range. Resonance can cause vibrations and audible noise, reducing the motor’s overall performance and accuracy.
High Power Consumption at Idle
Stepper motors often require continuous current through their coils to hold position, even when idle. This increases power consumption and heat generation and potentially reduces efficiency.
Lower Efficiency Than Other Motors
A significant portion of electrical energy converts into heat rather than motion, leading to thermal management challenges and reduced performance over extended periods.
What Are Servo Motors?
Servo motors are closed-loop control systems incorporating real-time feedback devices to adjust their position, velocity, and torque. These motors operate by comparing their actual position to the desired position and making precise adjustments through feedback mechanisms.
Servo motors include a controller and an encoder that work together to ensure accurate movement and torque delivery. They are versatile and are often used in demanding applications where high performance and adaptability are essential.
Advantages of Servo Motors
Servo motors are popular in many applications due to their numerous advanced features and benefits. Here are some of the key advantages.
Exceptional Precision
Feedback mechanisms, such as encoders or resolvers, ensure that servo motors maintain high levels of accuracy. This allows for real-time error correction, which is crucial for applications with varying loads or requiring minute adjustments.
Smooth and Stable Operation
Unlike stepper motors, servo motors provide smooth, vibration-free movements. Their operation reduces the risk of resonance, ensuring consistent and seamless functionality, even under demanding conditions.
Energy Efficiency
Servo motors draw only the power needed to generate the required torque, reducing energy consumption and cost savings over time.
High Torque at Varying Speeds
One of the significant advantages of servo motors is their ability to deliver consistent torque across a wide range of speeds. This makes them valuable in applications requiring low-speed precision and high-speed power.
Limitations of Servo Motors
While servo motors are highly versatile and precise in their applications, they come with several limitations that you must consider.
Higher Cost
One of the major drawbacks of servo motors is their cost. This can challenge projects with tight budgets, limiting their feasibility in cost-sensitive applications.
Complex Installation and Tuning
Servo motors require detailed tuning to ensure proper configuration for specific system dynamics. This tuning process can be time-consuming and requires technical expertise.
Potential for Instability
An improperly calibrated servo motor system can lead to operational instability. Factors such as improper tuning, load variations, or mismatched control systems can result in erratic behavior.
Higher Maintenance Requirements
Due to their complex construction and use of internal components, they may require more frequent maintenance than simpler motor systems.
Limited Overload Capacity
Servo motors generally have limited tolerance for overloads. Prolonged operations beyond their rated capacity can lead to overheating or damage, making it essential to design systems with sufficient safety margins.
Applications of Stepper Motors
Stepper motors are crucial in 3D printers and CNC machines, enabling precise positioning and intricate designs. They are integral in plotters and engraving devices, where exact motion and accuracy are essential for delivering high-quality output.

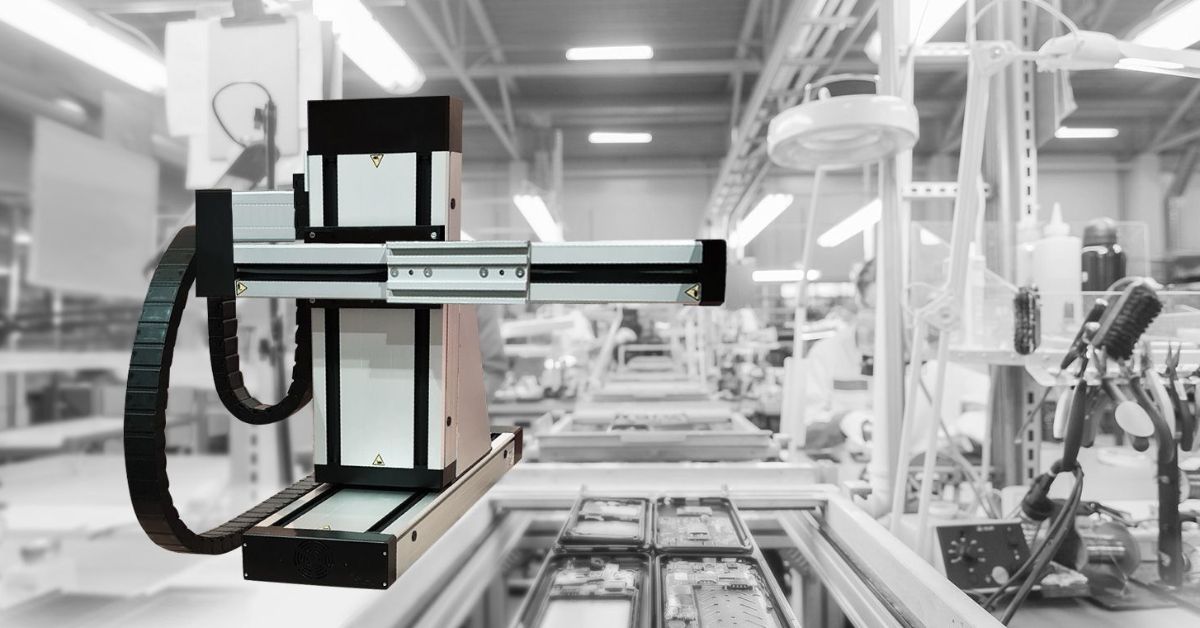

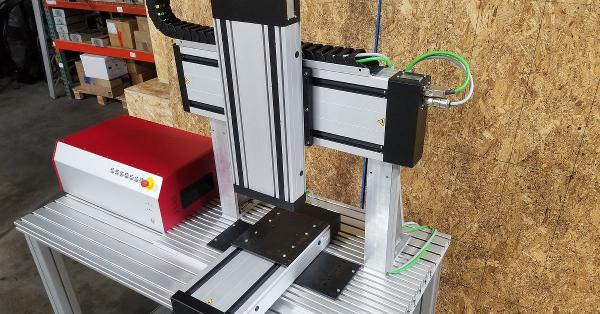

Stepper motors are indispensable in automated assembly lines, performing consistent and repetitive tasks with high precision, which is critical for production efficiency. Their integration is also essential in advanced setups like a Cartesian gantry system, cementing their role as a backbone in technology-driven industries.
Applications of Servo Motors
The applications of servo motors span various industries due to their reliability, precision, and adaptability in dynamic systems. A key use is in robotic arms, which enable high-speed, accurate, and repeatable movement for tasks like assembly or welding. They drive conveyor belts in industrial automation, ensuring smooth and efficient operation critical for throughput.
CNC machines rely on servo motors for precise control in cutting, milling, and drilling, delivering exceptional results in manufacturing. These motors are central to the performance of autonomous vehicles and drones, offering responsive and stable motion control.
Understanding the differences between stepper and servo motors will allow you to make an informed decision to optimize your project’s performance. Stepper motors provide simplicity, precision, and affordability, making them ideal for straightforward projects with limited budgets. Meanwhile, servo motors are essential for demanding and dynamic applications as they deliver exceptional adaptability, speed, and accuracy.
