The Differences Between Lead and Ball Screw Actuators

Precise and controlled linear motion is essential in various industries, from manufacturing to robotics, aerospace, and automotive. Actuators play a vital role in achieving this level of control, providing the necessary force and accuracy to move objects in a linear direction. There are two commonly used types of actuators, lead and ball screws, each with unique characteristics and advantages.

By understanding the main differences between lead and ball screw actuators, you can choose the most suitable actuator for your application. This guide will highlight their unique features and benefits to cover your linear motion control needs.

Understanding Actuators and Their Importance in Linear Motion Control

Actuators are essential components for linear motion control. By converting rotary motion into linear motion, actuators facilitate the smooth and accurate operation of various mechanisms and systems. From robotic arms performing intricate tasks to conveyor belts transporting goods, actuators ensure that objects move quickly, accurately, and efficiently.

Choosing the right type of actuator for specific linear motion control needs is essential to ensure optimal performance and longevity. Different actuators offer varying characteristics, such as speed, load capacity, precision, and durability.

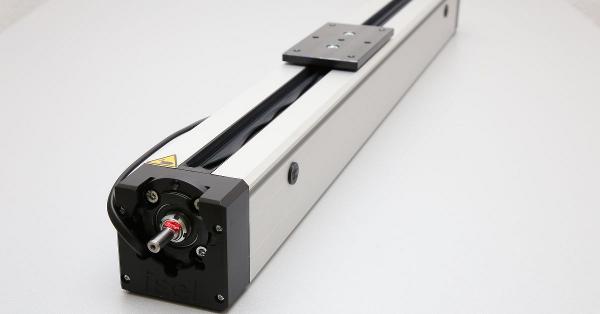

The Basics of Lead Screw Actuators

Lead screw actuators, also known as lead screw assemblies, utilize a threaded shaft and nut mechanism to convert rotary motion into linear motion. The threaded shaft, known as the lead screw, has helical threads that engage with the threads on the nut. When the lead screw rotates, it causes the nut to move linearly along the screw’s axis.

The simplicity and cost-effectiveness of lead screw actuators make them popular for applications that do not require high precision or rapid movement.

The Advantages and Limitations of Lead Screw Actuators

Lead screw actuators offer several advantages that make them suitable for a variety of applications. They also have limitations to consider when selecting the appropriate actuator.

Advantages

• Simplicity—Lead screw actuators have a straightforward design and are relatively easy to manufacture.
• Cost-effectiveness—Due to their simplicity, lead screw actuators are more affordable than complex linear motion systems, making them an attractive choice for applications with budget constraints.
• High mechanical efficiency—Lead screw actuators can achieve high mechanical efficiency, converting a significant percentage of the input torque into linear motion. This efficiency helps to minimize energy waste and maximize system performance.
• Versatility—Lead screw actuators are available in various sizes and configurations, allowing for customization to suit different application requirements.

Limitations

• Backlash—Lead screw actuators can exhibit some degree of backlash, which refers to the slight play or clearance between the screw threads and nut. This can reduce accuracy and repeatability, particularly in applications requiring precise positioning.
• Efficiency at high speeds—Lead screw actuators may experience reduced efficiency at high speeds due to factors such as friction and inertia. This limitation makes them less suitable for applications that require rapid or continuous motion.
• Limited speed capability—Lead screw actuators can’t handle high-speed applications due to the friction and wear that can occur between the screw threads and nuts. Operating lead screw actuators beyond their recommended speed limits can lead to decreased performance and premature wear.

Ball Screw Actuators

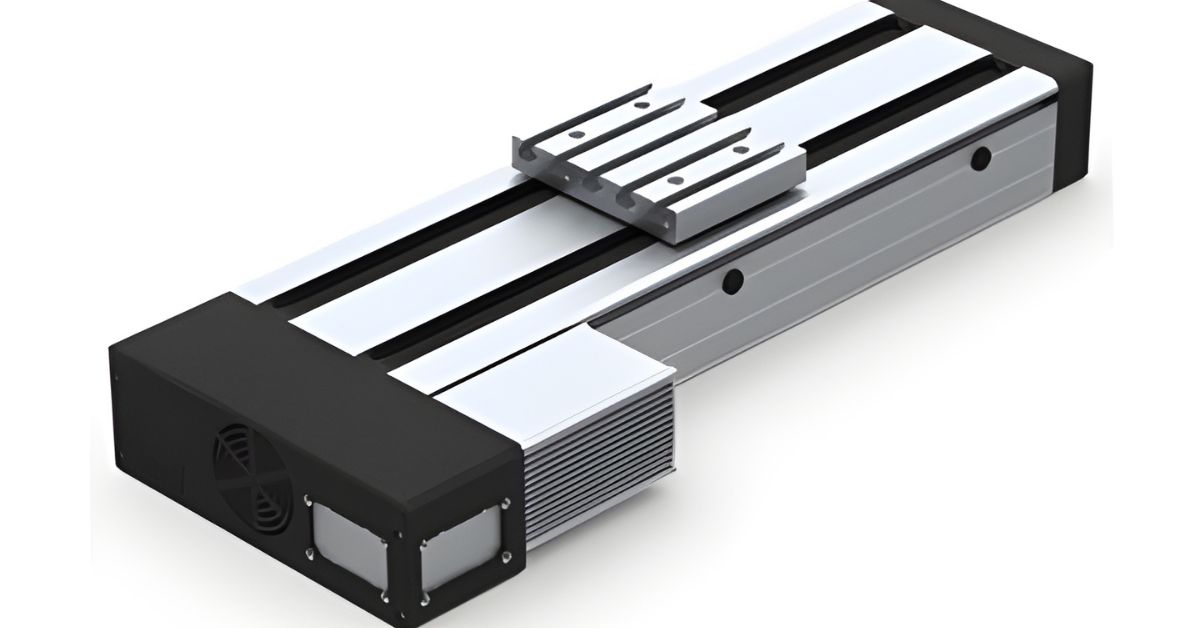

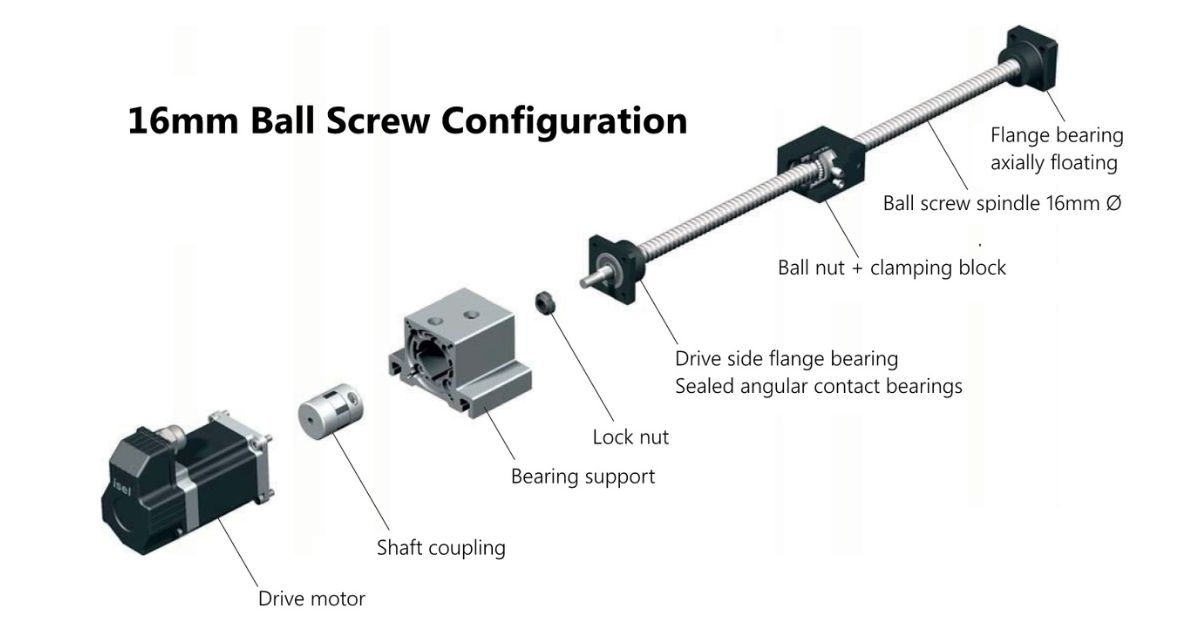

Ball screw actuators are vital components of many mechanical systems that require precise and efficient linear motion. These actuators utilize a threaded screw and a ball nut containing recirculating ball bearings. As the screw rotates, the ball bearings circulate within the nut, reducing friction and enabling smooth, efficient linear motion.

They are popular in industries such as manufacturing, automation, robotics, and aerospace, where precise and reliable linear motion is essential. With their ability to provide smooth and efficient movement, ball screw actuators play a crucial role in enhancing the performance and reliability of various mechanical systems.

Performance of Ball Screw Actuators

Ball screw actuators offer several advantages over lead screw actuators, making them ideal in applications that require high precision, speed, and load-carrying capacity, but they also have some disadvantages.

Advantages

• High efficiency—Ball screw actuators have higher efficiency compared to lead screw actuators, allowing for reduced power consumption and improved energy efficiency.
• Greater speed and acceleration—The low friction and backlash in ball screw actuators enable higher speeds and rapid acceleration, making them ideal for applications that require quick and precise movements.
• Enhanced load capacity—Ball screw actuators can handle heavier loads due to their ability to distribute the load over a larger contact area, ensuring reliable operation even in demanding applications.
• Improved positioning accuracy—The recirculating ball bearing mechanism minimizes axial play, enhancing positional accuracy and repeatability.
• Longer service life—With proper maintenance, ball screw actuators offer a longer service life due to their reduced wear and friction.

Disadvantages

• Higher cost—Ball screw actuators tend to be more expensive than lead screw actuators, primarily due to the precision manufacturing processes and the use of ball bearings.
• Increased complexity—The design and construction of ball screw actuators can be more intricate, requiring careful installation and maintenance to ensure optimal performance.
• Potential for noise—The rolling elements in ball screw actuators can generate noise, although proper lubrication and the appropriate ball nut style can mitigate this.

Applications of Lead Screw Actuators

Lead screw actuators are popular in various industries and systems due to their simplicity, cost-effectiveness, and reliable performance. Lead screw actuators are common in machine tools, providing smooth and accurate movement for tasks such as cutting, milling, and drilling.

3D printers employ them to position the print head and bed precisely. Packaging machinery benefits from the controlled movement of conveyor belts and packaging components. They play a crucial role in medical equipment, ensuring precise and controlled motion in devices such as robotic arms and patient positioning systems.

Applications of Ball Screw Actuators

CNC machines, robotics, semiconductor manufacturing, aerospace systems, and industrial automation extensively use ball screw actuators. In CNC machines, these actuators enable precise and smooth movement, ensuring accurate machining processes. In robotics, they provide precise and repeatable motion control.

Aerospace systems use them for flight control systems, landing gear, and antenna deployment mechanisms. Industrial automation applications, such as material handling, assembly lines, and packaging, benefit from their high-speed and precise linear motion capabilities. The versatility and performance of quality ball screw-driven actuators make them indispensable in applications where precision, speed, and reliability are critical.

Lead and ball screw actuators offer distinct performance characteristics and suitability for different applications. One provides simplicity and cost-effectiveness, while the other delivers superior precision, speed, and load-carrying capacity. Understanding the differences between lead and ball screw actuators is crucial for selecting the most suitable option.
