Differences Between Precision Rolled vs. Ground Ball Screws

Ball screws are integral components in a wide range of machinery and devices, known for their ability to transmit motion and force with remarkable precision and control. As industries continue to evolve, the demand for more sophisticated and refined motion systems keeps rising, making the choice between precision rolled and ground ball screws increasingly significant.

Though these screws might appear similar at first glance, their distinctions in manufacturing and operational traits reveal differences that can greatly impact performance in specific applications. Choosing the appropriate ball screw type is crucial, as it directly influences the reliability, efficiency, and cost-effectiveness of your machinery.

Learning about the differences between precision rolled vs. ground ball screws will help you understand more about their benefits and limitations. This will provide valuable knowledge to support your engineering decisions, ensuring that you select the ball screw that best aligns with your project's needs and objectives.

Understanding Precision Rolled Ball Screws

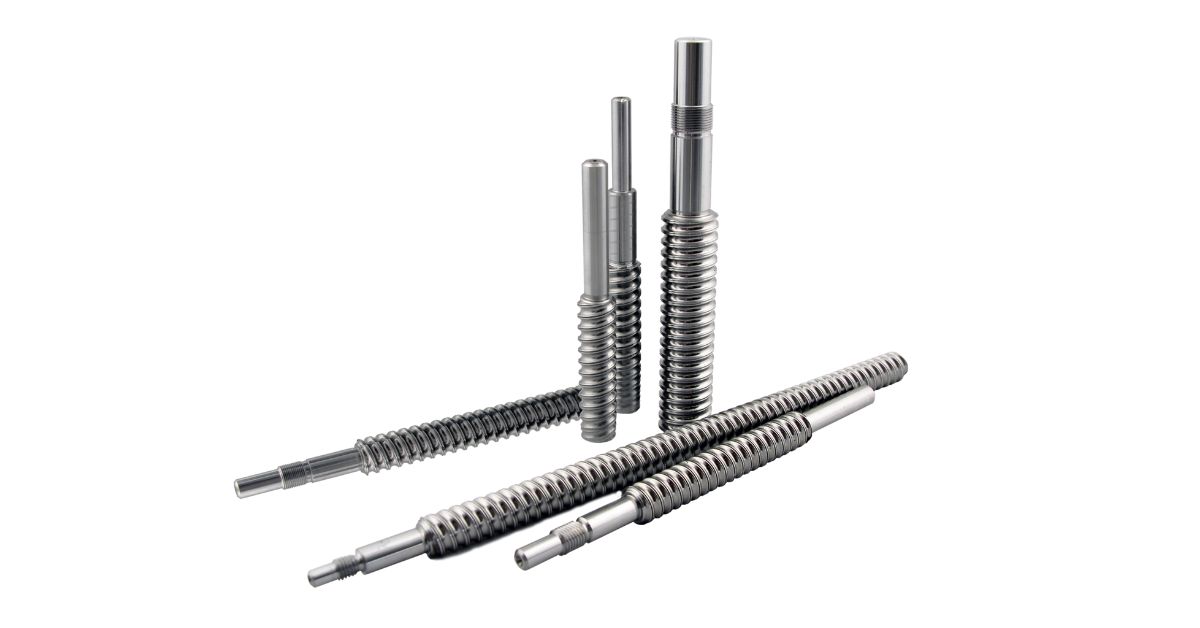

Precision rolled ball screws go through an economical and efficient rolling process, which involves pressing a pre-hardened screw blank between two dies to form the spiral groove. This method allows for the high-volume production of ball screws with reasonable accuracy and at lower costs than their ground counterparts.

Despite the compromises in ultimate precision, precision rolled ball screws offer a reliable solution for numerous industrial applications where ultra-high accuracy is not a stringent requirement. These ball screws exhibit consistent performance and are particularly favored in scenarios where the balance between precision, cost-effectiveness, and production efficiency is critical.

Understanding Ground Ball Screws

Ground ball screws stand out due to their precision manufacturing process, which involves grinding the screw threads to create tight tolerances and exceptional surface finishes. This process is time-intensive and involves carefully controlled parameters to achieve the desired level of accuracy.

Ground ball screws work best in applications where the highest level of precision, load capacity, and smoothness of operation are indispensable. The precise geometric alignment of these screws minimizes backlash and ensures that every rotational movement translates accurately into linear motion. They are essential in industries that operate under exacting standards, such as aerospace, where components must perform flawlessly under extreme conditions.

Comparing Manufacturing Processes

The manufacturing processes of precision rolled and ground ball screws define their suitability for different applications based on accuracy, performance, and cost. The precision rolling process involves the plastic deformation of a pre-hardened screw blank using two dies, effectively forming the helical grooves without removing material.

Ground ball screws go through a meticulous grinding process that systematically removes material to create threads with exceptional surface finish and tight tolerances. Though more expensive due to the complex manufacturing process and premium materials, they provide unparalleled accuracy and performance, making them indispensable in sectors where uncompromising standards are vital.

Durability and Lifespan

In assessing the durability and lifespan of ball screws, you must consider the specific conditions of the intended application. Quality precision rolled ball screws, known for their robust construction, offer adequate durability for a wide range of general industrial applications. They can withstand moderate stress and wear over time.

Ground ball screws, though more expensive due to their intricate manufacturing process, excel in environments that demand exceptional precision and high load capacities. The tightly controlled grinding process ensures a high-quality surface finish, reducing friction and wear during operation, which translates into longer-lasting performance.

Cost Analysis

Cost considerations play a pivotal role in the selection of ball screws, influencing the overall budget and efficiency of engineering projects. Precision rolled ball screws are more economical due to their less intensive manufacturing process, providing an effective solution for applications that require high accuracy without the prohibitive costs associated with ground screws. T

Ground ball screws, which undergo a meticulous and intricate grinding process, incur higher production costs because of the precision and materials required. While these screws come with a premium price tag, it means investing in applications where their unparalleled accuracy, minimal backlash, and substantial load-bearing capacities are indispensable.

Assessing Load Capacity and Efficiency

Precision rolled ball screws deliver robust load-bearing capacities and maintain good efficiency levels for a wide array of applications. Engineers often select precision rolled ball screws for their cost-effectiveness and satisfactory performance in medium-duty applications.

Ground ball screws, manufactured through a meticulous grinding process, naturally offer superior performance in handling challenging loads because of their enhanced precision and tighter tolerances. Their outstanding load-bearing capabilities make them the favored choice in high-stakes environments such as aerospace, where reliability under extreme stress is nonnegotiable.

Surface Finish and Material Quality

Precision rolled ball screws provide satisfactory quality appropriate for most industrial applications. One of their most notable benefits is their cost-effectiveness. The rolling process inherently reduces production time and material waste, allowing manufacturers to produce these screws at a lower cost without significantly compromising performance. They deliver dependable accuracy levels sufficient for many precision-driven tasks, providing a suitable balance between performance and economics.

The surface finish and material quality of ball screws are crucial in determining their operational efficiency, wear resistance, and lifespan. Ground ball screws excel due to the precision grinding process, which results in a superior surface finish. This meticulous process reduces friction, leading to smoother operation and extended durability, especially in environments that require exceptional precision.

Maintenance and Reliability

Regular maintenance is essential to ensure the reliability and longevity of ball screws, regardless of whether they are precision rolled or ground. Implementing a systematic maintenance program can significantly reduce the risk of unexpected failures and extend the lifespan of these components. Maintenance practices include regular cleaning, proper lubrication, and periodic inspections to detect wear or abnormalities.

For applications using ground ball screws, the focus is on preserving their precision features and minimizing backlash, requiring more detailed checks and calibrations. Precision rolled ball screws benefit from regular maintenance as well, ensuring they continue to perform efficiently within their designed operational parameters.

Choosing between precision rolled and ground ball screws depends largely on application exigencies, budget constraints, and performance requirements. Precision rolled ball screws offer an economical option with reliable performance for many applications, making them a cost-effective choice with a solid balance of quality.

Ground ball screws boast unparalleled precision and load capacities, meriting their use in applications that demand a superior level of accuracy. A careful analysis of these factors will guide you in selecting the best screw type, ensuring optimal functionality and longevity for your projects.
