A Guide to Choosing Rotary Stages for Your Application

Understanding the degrees of rotary stages can support the accuracy and performance of your sophisticated machinery. Whether assembling microelectronics, developing advanced photonics systems, or engineering cutting-edge medical devices, the selection of an appropriate rotary stage can impact your project’s success.

These devices serve as the backbone of precision and adaptability in motion control systems. As innovations continue to push possibilities, the applications for rotary stages will expand across various industries, including aerospace, manufacturing, and renewable energy technology.

By investing time in the selection phase, the rotary stage you choose will meet your current specifications and adapt to future advancements. This guide to choosing rotary stages for your application will help you make an informed decision, optimize your operational efficiency, and facilitate groundbreaking achievements in your field.

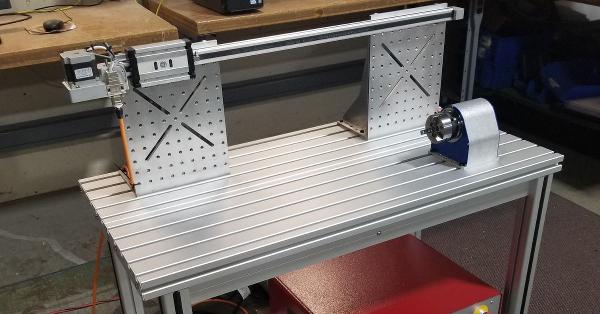

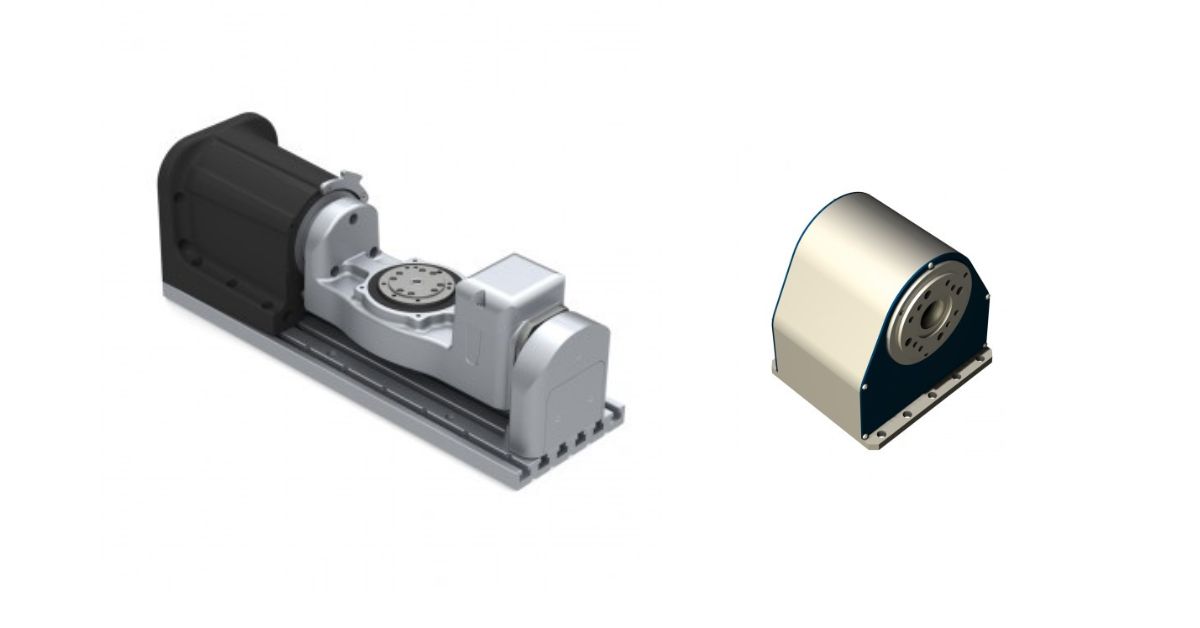

Understanding Rotary Stages

Rotary stages are sophisticated mechanical components that deliver precise angular positioning, which supports systems demanding controlled rotational motion. At the same time, accuracy and repeatability is critical for applications that require meticulous alignment and movement.

Depending on the application, some rotary stages are manual and rely on the user for adjustments. Motorized versions, provide automated control for enhanced precision. Motorized rotary stages often integrate advanced technology, such as stepper or servo motors, with high-resolution encoders, offering seamless synchronization with complex systems.

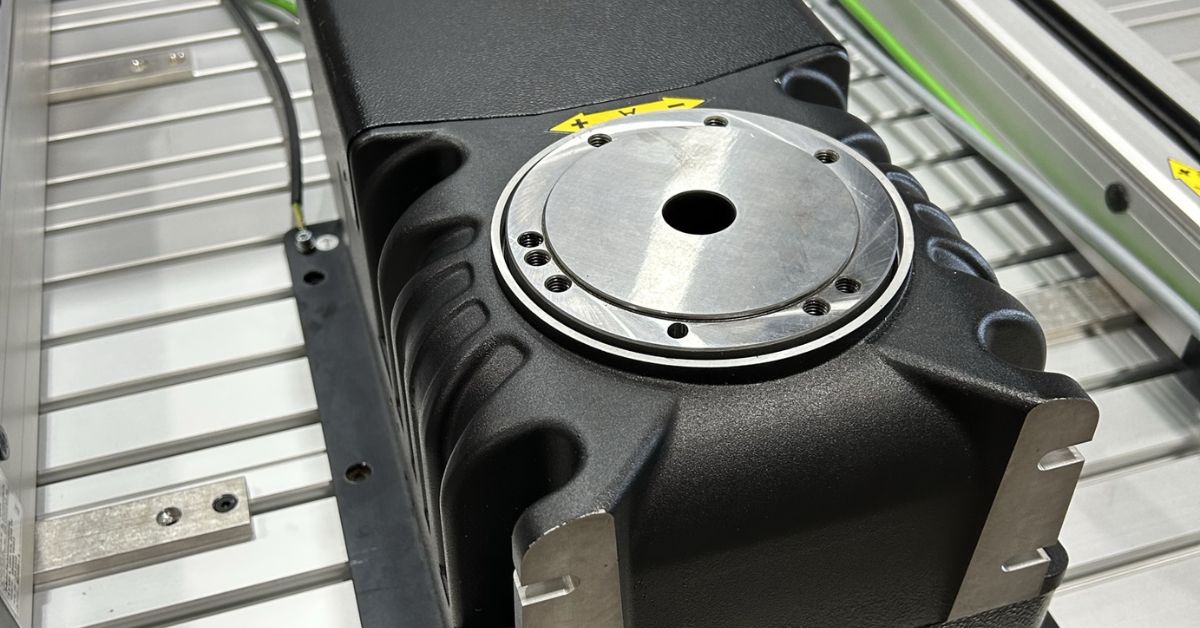

Key Components of Rotary Stages

The performance and suitability of a rotary stage depend on several components that contribute to its functionality and durability. Understanding these components and their specifications is critical for selecting a rotary stage that aligns with your operational needs:

• The base is the foundation of the rotary stage, typically constructed from aluminum or steel for stability and strength. It provides support and boosts the stage’s resilience to environmental factors.
• The rotating platform holds the object or payload and enables rotation. Precision machining ensures smooth motion and high accuracy for exact alignment.
• The drive mechanism is responsible for the rotational movement and can vary based on the type of rotary stage. Common drive systems include worm gear drives for manual stages and servo or stepper motors for motorized stages.
• The bearing system minimizes friction and wear, enhances accuracy, and extends the stage’s lifespan.
• In motorized rotary stages, the control system manages the operation of the drive mechanism. It interfaces with other components for synchronization and accurate motion command execution in automated systems.

Load Capacity and Weight Constraints

Load capacity and weight constraints are essential to consider when selecting a rotary stage, as they directly influence the stage’s stability and longevity. The rotary stage must support the object’s weight or payload during operation as well as additional forces arising from acceleration, deceleration, or external environmental influences.

Choosing a stage with an insufficient load capacity can result in impaired performance, decreased precision, and accelerated wear and tear. To prevent such issues, assess the maximum weight and force of the application and select a stage that provides a suitable margin above these requirements.

Desired Range of Motion

When choosing rotary stages for your applications, you should understand the desired range of motion. Different applications may require varying degrees of rotational movement, from continuous 360-degree rotation to restricted angular movements.

People in the astronomy or robotics sectors might benefit from uninterrupted full-circle rotation to encompass wide observational fields or fluid robotic articulation, respectively. Precision optics or microscopy applications often require constrained movements to align components with extreme accuracy without overstepping defined limits. Evaluate the motion requirements for your intended use, including the extent of rotation and the resolution and speed of the movements.

Drive Mechanisms

Drive mechanisms in rotary stages determine the system’s operation, control, and performance. Selecting the right drive mechanism depends on the required speed, level of control, and automation necessary for your application.

Stepper motors are popular for their precise step control, making them suitable for applications that require accurate position feedback and hold a steady position when removing power. Servo motors offer closed-loop feedback and provide smooth operation and rapid acceleration or deceleration. They are ideal for high-speed and high-torque applications that require precise motion control under varying load conditions.

Bearing Types

The choice of bearing type in a rotary stage dictates its performance characteristics, including friction levels, load capacity, and smoothness of rotation. Several types of bearings are useful in rotary stages.

Ball bearings are popular for handling radial and axial loads with minimal friction. They are suitable for applications that require precision and longevity and lack weight constraints. Crossed-roller bearings enhance load capacity and rigidity, making them ideal for applications requiring stability and minimal play. Air bearings offer near-frictionless movement through a cushion of air, allowing for ultra-high precision and smooth motion.

Environmental Conditions

The operational environment could influence the performance and longevity of rotary stages. When selecting a rotary stage, consider temperature fluctuations, humidity levels, and potential exposure to corrosive substances or harsh environments.

Temperature variations can affect the stage’s material properties and mechanical stability, leading to performance degradation over time. High humidity may introduce moisture and exacerbate corrosion or increase friction in bearings. Exposure to corrosive chemicals or abrasive particles can wear down components and reduce the equipment’s lifespan.

Integration With Existing Systems

Seamless integration of rotary stages into existing systems is essential for enhancing operational fluidity and avoiding disruptions. It involves assessing various compatibility factors, including control systems, software interfaces, and physical dimensions.

Because the rotary stage must be capable of interfacing with current control systems, it requires compatibility with existing communication protocols and software platforms to facilitate cohesive operation. This may involve updating or customizing software to accommodate new hardware functions.

Selecting the right rotary stage demands attention to a broad range of technical, operational, and environmental considerations. As you can see, these stages advance automation and precision across various industries.

Considering factors such as the desired range of motion, precision, drive mechanisms, and integration requirements ensures the rotary stage you choose aligns with the needs of the application. Collaborating with an experienced automation equipment manufacturer provides access to invaluable resources and insights. They will help you balance performance with financial limitations and navigate technical challenges effectively.
