Work Holding Components
A variety of clamps and vises and clamp bars are available to hold work pieces to the surface of Isel Automation Gantry, slides and table plates.
- For a list of T Nuts and clamping accessories, see
Robot Accessories and T-Nuts.
- See our selection of PRECISION WIDE FIXTURE PLATES
- Work holding devices work with our T slot Topped Workbenches
 |
ADJUSTABLE TOGGLE CLAMP Made of steel, the Adjustable Toggle Clamp is ideal for holding odd shaped parts. The front screw can be positioned along the T slot while the rear screw adjusts the pressure on the part. Both M6 screws and an M6 T-Slot nut are included with the clamp. Sold as a set of 2, PN 290051 |
 |

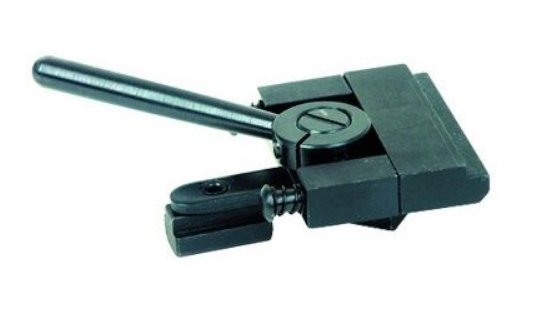

LOW PROFILE CAM LOCK CLAMP This cam clamp is designed for lighter low profile materials such as engraving plastic sheets. The T slot mounting hardware is included. PN 290001 |
 |

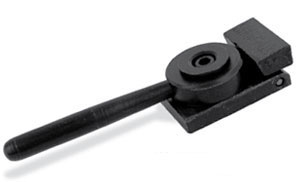

HEAVY-DUTY CAM LOCK CLAMP Made of black oxidized hardened steel, this clamp will provide up to 2500 N of clamping force with 100 N (22.5 lbf) of actuating force. A rotation of the locking arm will provide a clamp stroke of 4 mm (.15 in). 15 mm (.6 in) high, 32 mm (1.3 in) wide, 107 mm (4.2 in) overall length. Provided with two-hole nut strip and screws to allow mounting to a T-Slot. PN 290002 |
 |

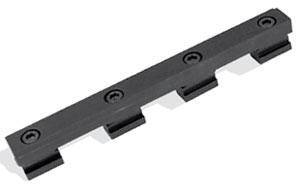

CLAMP BARS Made of plated steel, these Clamp Bars are 10 mm (.39 in) high and 20 mm (.8 in) wide. Available in 3 lengths of 125, 175 and 250 mm. To be used with either the cam lock clamps or the pneumatic clamps to make a work holder. Provided with screws and nuts to allow mounting to a T-Slot. 2 clamp bars per set PN: 125mm clamp bars 290021 0125 175mm clamp bars 290021 0175 225mm clamp bars 290021 0225 |
 |

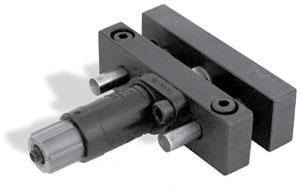

PNEUMATIC CLAMP Made of hardened steel with a black oxide finish, the Pneumatic Clamp is provided with screws and nuts for mounting to the T-Slots and a fitting for 6 mm (.23 in) OD, 4 mm (.15 in) ID plastic pressure tube. PN 290010 |
 |

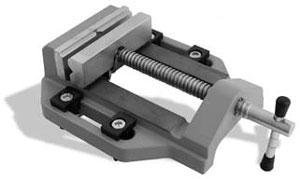

MANUAL VISES These Manual Vises are made of steel with side slots for flexible mounting. The moveable jaws have side guides and the stationary jaws have both horizontal and vertical V-slots for holding round objects. Both jaws have support surfaces for holding flat objects. Available in SMALL or LARGE size. SMALL: 152L x 130W x 45H (6 x 5.1 x 1.8), PN 290055 LARGE: 215L x 175W x 75H (8.5 x 6.9 x 3), PN 290056 |
