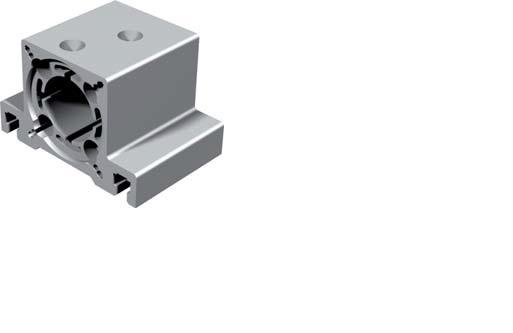

End Bearing Support Blocks
End Bearing Support Blocks for use with our 16 and 25 mm diameter ball screw. The support blocks allow for mounting of the screws to complete your automaiton application.
Configure Your Part
Select Options then Click “Add to Quote”
Part Number:
|
| Add To Quote |
| Drive side and locking nut Flange Bearing | |||||||||||||
| Version | Item-No. | B | L | L1 | D1 | D2 | T1 | T2 | G1 | G2 | d | Thread | |
| Ø 12 | angular | 216504 0030 | 40 | 19.5 | 8 | 35 | 8 | 38.2 | - | 45° | 90° | 4x Ø 4.5 | - |
| Ø 16 | angular | 216504 0001 | 45 | 23 | 6 | 35 | 10 | 45 | - | 45° | 90° | 4x Ø 12 x 4U / Ø 7 | - |
| Ø 16 | round | 216504 0003 | 62 | 23 | 6 | 35 | 10 | 45 | 54 | 45° | 90° | 4x Ø 12 x 4U / Ø 7 | 4x M6 |
| Ø 20 | round | 216504 0031 | 64 | 23 | 8 | 39.5 | 12 | 50 | 54 | 45° | 90° | 4x Ø 12 x 4U / Ø 7 | 4x M6 |
| Ø 25 | round | 216504 0006 | 72 | 34 | 8 | 53 | 17 | 62 | 62 | 30° | 60° | 6x Ø 12 x 4U / Ø 7 | 6x M6 |
| Floating bearing side Flange Bearing | |||||||||||
| Item-No. | B | L | L1 | L2 | L3 | L4 | D1 | D2 | T | d | |
| Ø 12 | 216504 0032 | 35 | 20 | 8 | 6 | 6.5 | 0.5 | 28 | 7 | 38.2 | Ø7.5 x 4U Ø4.5 |
| Ø 16 | 216504 0002 | 45 | 29 | 12 | 4.5 | 9.5 | 0.5 | 35 | 12 | 45 | Ø12 x 4U Ø7 |
| Ø 20 | 216504 0033 | 50 | 29.5 | 12 | 4.5 | 5 | 1.5 | 35 | 12 | 50 | Ø12 x 4U Ø7 |
| Ø 25 | 216504 0005 | 45 | 29 | 12 | 8 | 10 | 0 | 35 | 15 | 45 | Ø12 x 4U Ø7 |
