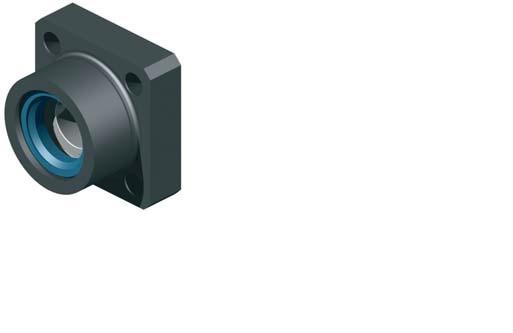

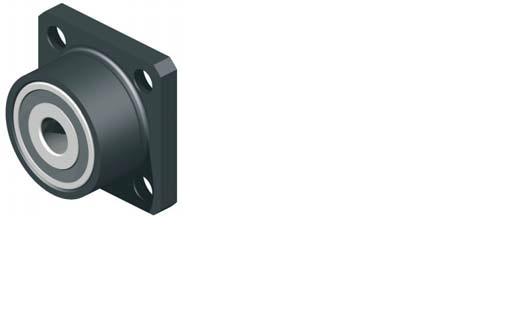

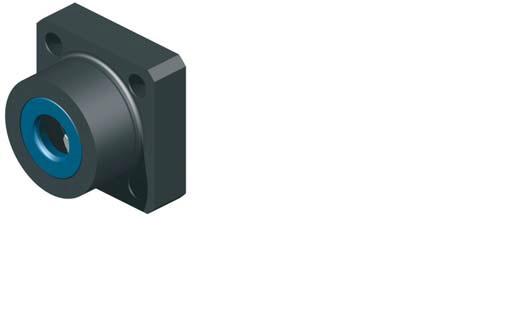

End Bearing Assemblies

We offer end bearing assemblies for our 16 and 25mm diameter machined ball screws.  They are angular contact bearings for the locking side and floating radial bearings for the far end support.


Spindle Diameter

version

item number

B.

L.

L1

D1

D2

T1

T2

G1

G2

d

thread

Ø 12 mm

rectangular

216504 0030

40

19.5

8th

35

8th

38.2

-

45 °

90 °

4x Ø 4.5

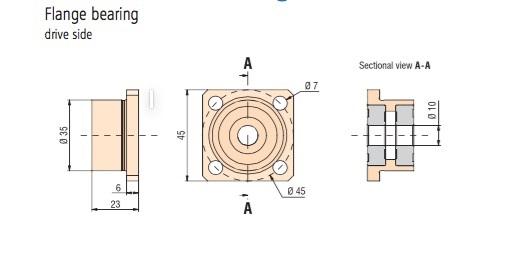

Ø 16 mm

rectangular

216504 0001

45

23

6th

35

10

45

-

45 °

90 °

4x Ø 12 x 4U / Ø  7

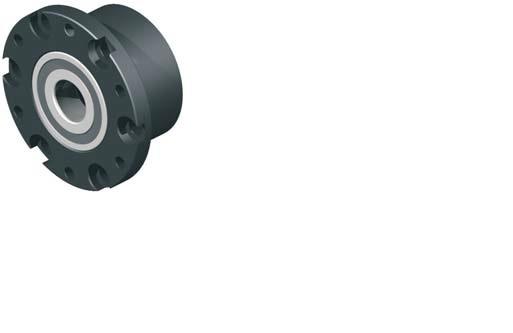

Ø 16 mm

round

216504 0003

62

23

6th

35

10

45

54

45 °

90 °

4x Ø 12 x 4U /  Ø  7

4x M6

Ø 20 mm

round

216504 0031

64

23

8th

39.5

12th

50

54

45 °

90 °

4x Ø 12 x 4U /  Ø  7

4x M6

Ø 25 mm

round

216504 0006

72

34

8th

53

17th

62

62

30 °

60 °

6x Ø 12 x 4U /  Ø  7

6x M6

Click here for CAD models
